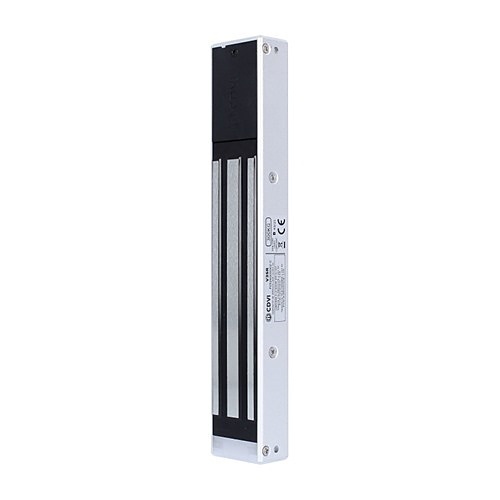

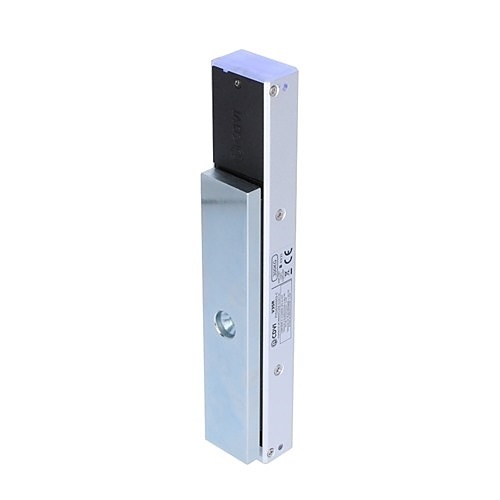

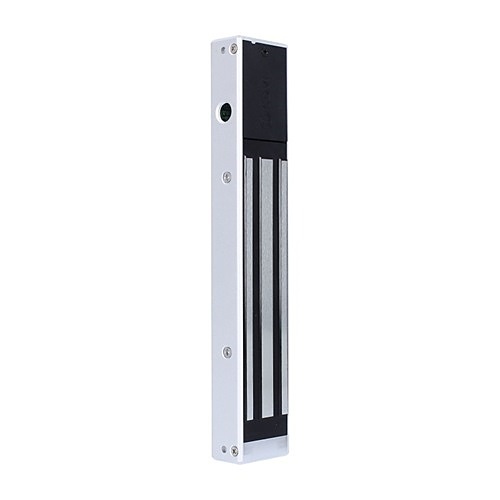

ADI #:V3SR Model #: V3SR Name: CDVI V3SR Magnet Mini 12/24vdc Monitored
Surface mount electro-magnetic lock
Up to 300kg holding force for robust security
Low consumption with only 290mA at 12V DC power supply
Product Overview
General Information
Discover the power of security with the CDVI V3SR Magnet Mini, a surface-mounted electro-magnetic lock designed for robust protection. Offering up to 300kg of holding force and featuring patented locking technology, this device ensures top-notch security. It operates efficiently with a low power consumption of just 290mA at 12V DC, and includes live status monitoring with visual LED indicators. Enhance your security setup further with the optional Z&L bracket (300-ZL). Perfect for those in need of reliable and efficient security solutions. Secure your peace of mind today!
Main Features
Surface mount electro-magnetic lock
Up to 300kg holding force for robust security
Low consumption with only 290mA at 12V DC power supply
Live status monitoring
Patented locking technology
Visual LED indication
Z&L bracket available - see 300-ZL
Information
Category : Access Control, Locking Devices, Magnetic Locks, Products
Specifications
General Information
ADI Part Number
V3SR
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
V3SR
Packaged Quantity
1
Product Name
Surface 300kg Magnetic Lock, Monitored
Product Series
V SERIES
Product Type
Magnetic Lock
Technical Information
Armature Plate Depth
11 mm
Armature Plate Depth (mm)
11
Armature Plate Width
38 mm
Armature Plate Width (mm)
38
Door Supported
Single Door
Holding Force (g)
300000
Physical Characteristics
Application/Usage
Access Control System, College, Commercial, Door, Industrial, Public Building, School, Wooden Door
Color
Silver
Form Factor
Surface Mount
Lock Depth
28 mm
Lock Depth (mm)
28
Lock Height
254 mm
Lock Length
245 mm
Lock Length (mm)
245
Lock Width
45 mm
Lock Width (mm)
45
Weight (Approximate)
1.088 kg
Power Description
Input Current
275 mA, 550 mA
Input Current (A)
0.275, 0.55
Input Voltage
12V DC, 24V DC
Product Information
Finishing
Aluminum
Holding Force
300 kg
Miscellaneous
Environmentally Friendly
Yes
Features
Live Status Monitoring, Patented Locking Technology, Surface Mount Electro-magnetic Lock
