Monitored
  • Aluminium

  • 550mA @12Vdc

  • 225mA @24Vdc

  • Up to 300Kg holding force

  • 228 x 39 x 27mm (LxWxD)

  • 5 Year Warranty

    • ' /> CDVI M300M Magnet Mini Transom 12/24vdc Monitored
    Please upgrade to the new Edge browser, or use Chrome, Firefox or Safari, before continuing. Internet Explorer will not support the best shopping experience on the ADI Digital Branch site after March 12, 2021. close button
    products
    ADI a Resideo company ADI a Resideo company

    CDVI M300M Magnet Mini Transom 12/24vdc Monitored

    Brand: CDVI
    ADI #:V3ER Model #: V3ER  Name: CDVI M300M Magnet Mini Transom 12/24vdc Monitored
    • Mortice mount electro-magnetic lock
    • Up to 300kg holding force for robust security
    • 12 or 24V DC operation

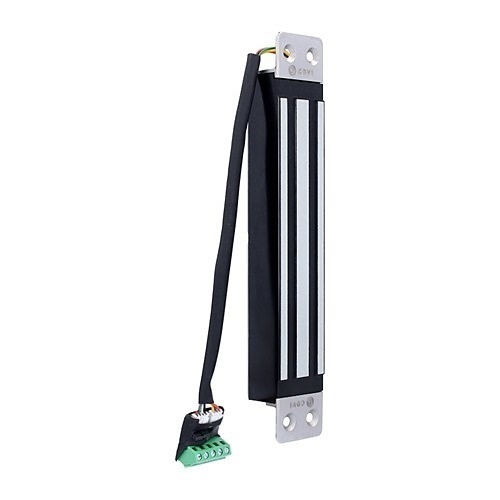

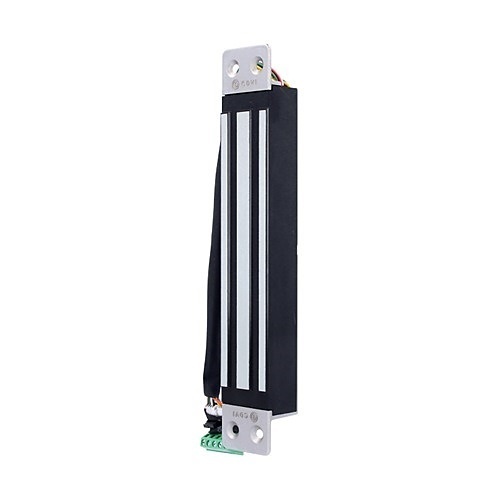

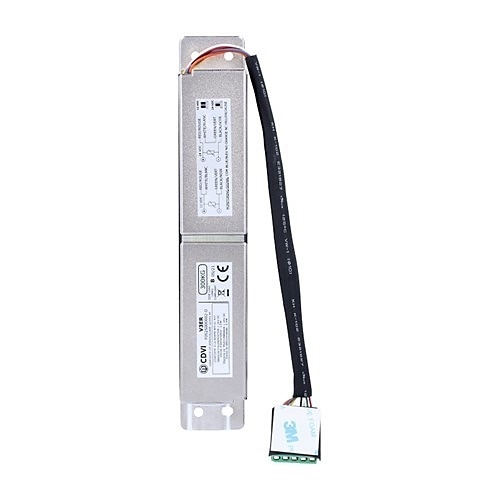

    Image of V3ER

    Product Overview

    General Information

    Main Features
    • Mortice mount electro-magnetic lock
    • Up to 300kg holding force for robust security
    • 12 or 24V DC operation
    • Live status monitoring
    • No moving parts
    • Great for swing or sliding doors - usually mounted into the transom
    Information
    Category : Access Control, Locking Devices, Magnetic Locks, Products

    Specifications

    General Information

    ADI Part Number
    V3ER
    Brand Name
    CDVI
    Manufacturer
    CDVI Group
    Manufacturer Part Number
    V3ER
    Packaged Quantity
    1
    Product Model
    M300M
    Product Name
    M300M Magnetic Lock
    Product Series
    V SERIES
    Product Type
    Magnetic Lock

    Technical Information

    Door Supported
    Single Door
    Power Consumption
    3.42W|3.48W

    Physical Characteristics

    Application/Usage
    Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door
    Color
    Silver
    Form Factor
    Flush Mount
    Lock Depth
    27 mm
    Lock Height
    228 mm
    Lock Length
    228 mm
    Lock Width
    39 mm
    Material
    Aluminium
    Weight (Approximate)
    1.1 kg

    Power Description

    Input Current
    225 mA, 550 mA
    Input Voltage
    12V DC, 24V DC

    Product Information

    Finishing
    Aluminum
    Holding Force
    300 kg

    Warranty

    Limited Warranty
    5 Year

    Miscellaneous

    Features
    Vandal Resistant, Weather Resistant
