CDVI V5SR V5 Series 500kg Surface Mount Magnetic Lock, Monitored, Fire Rated, LED, 12/24VDC

Brand: CDVI
ADI #:V5SR Model #: V5SR  Name: CDVI V5SR V5 Series 500kg Surface Mount Magnetic Lock, Monitored, Fire Rated, LED, 12/24VDC
  • Surface mount electro-magnetic lock
  • Up to 500kg holding force for robust security
  • 12 or 24V DC operation

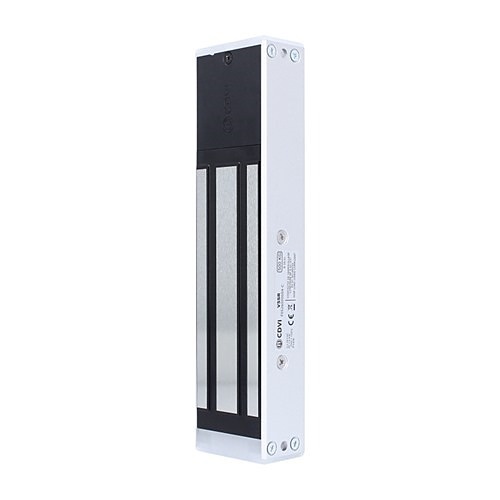

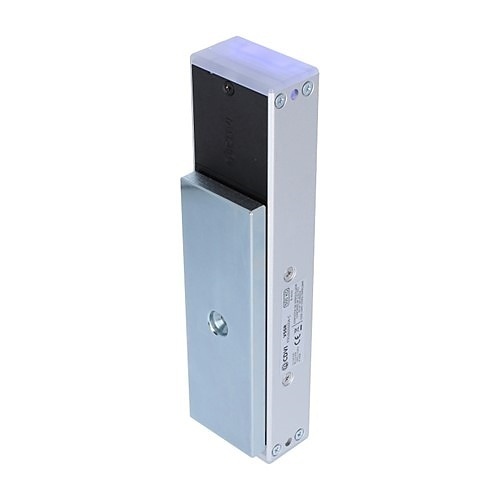

Image of V5SR

Product Overview

General Information

Main Features
  • Surface mount electro-magnetic lock
  • Up to 500kg holding force for robust security
  • 12 or 24V DC operation
  • Fire rated for 30 mins under EN1634-1 and EN1634-2
  • Live status monitoring
  • Patented locking technology
  • Visual LED indication
  • Z&L bracket available - see 500-ZL
Information
Category : Access Control, Locking Devices, Magnetic Locks, Products
EAN Code : 3662211010253

Specifications

General Information

ADI Part Number
V5SR
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
V5SR
Packaged Quantity
1
Product Model
V5SR
Product Name
V5SR Magnetic Lock
Product Series
V SERIES
Product Type
Magnetic Lock

Technical Information

Armature Plate Depth
12 mm
Armature Plate Width
60 mm
Door Supported
Single Door
Power Consumption
3.48W

Physical Characteristics

Application/Usage
Access Control System, College, Commercial, Door, Industrial, Public Building, School, Wooden Door
Color
Silver
Form Factor
Surface Mount
Lock Depth
41 mm
Lock Height
266 mm
Lock Length
273 mm
Lock Width
67 mm
Material
Aluminum
Weight (Approximate)
2.86 kg

Power Description

Input Current
275 mA, 550 mA
Input Voltage
12V DC

Product Information

Finishing
Aluminum
Holding Force
500 kg

Warranty

Limited Warranty
10 Year

Miscellaneous

Environmentally Friendly
Yes
Features
Fail Safe, Monitored, No Residual Magnetism
Package Contents
  • V5SR Magnetic Lock
  • armature plate
