Name: AXIS A9188 A91 Series Network I/O Relay Module, 8 I/Os with Supervised Inputs and Configurable Levels
Brand: AXIS Communications
SKU: 0820-001

AXIS A9188 A91 Series Network I/O Relay Module, 8 I/Os with Supervised Inputs and Configurable Levels

Brand: AXIS Communications

ADI #:0820-001 Model #: 0820-001 Name: AXIS A9188 A91 Series Network I/O Relay Module, 8 I/Os with Supervised Inputs and Configurable Levels

8 I/Os with supervised inputs and configurable levels
8 form C relays
12 and 24V DC output

Product Overview

General Information

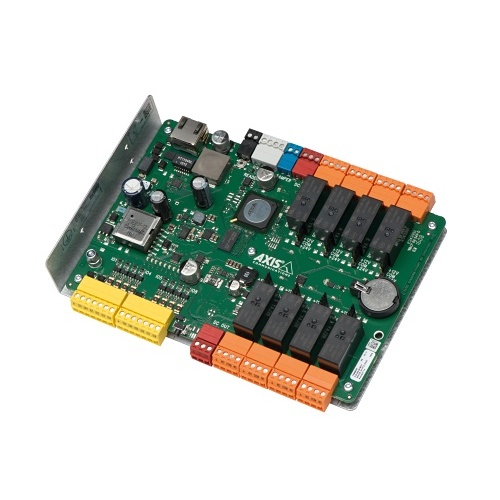

With its eight form C relays, A9188-VE Network I/O Relay Module is particularly useful for integrating AXIS A1001 Network Door Controller with elevator systems for floor-access management.In addition, it can be used to extend the functionality of any Axis product, particularly when numerous I/Os or relays are needed. The module reacts on inputs, such as signals from PIR motion detectors or switches, to trigger actions. A9188-VE supports VAPIX® and AXIS Camera Application Platform (ACAP) and can also be used with AXIS Camera Station or third-party software.

Main Features

8 I/Os with supervised inputs and configurable levels
8 form C relays
12 and 24V DC output
PoE+, PoE or 12 and 24 V DC input
Axis open protocols - VAPIX and ACAP

Information

Category : Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Intrusion, Power Products, Products, Relays

EAN Code : 7331021049895

Specifications

General Information

ADI Part Number

0820-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

0820-001

Product Line

Product Model

A9188

Product Name

A9188 Network I/O Relay Module

Product Type

Relay

Certifications

NDAA Compliant

Yes

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-30°C

Relative Humidity

20% - 85%

Physical Characteristics

Application/Usage

Door Control

Depth

120 mm

Height

43 mm

Weight (Approximate)

500G

Width

186 mm

Power Description

Minimum Operating Voltage

8V DC

Warranty

Limited Warranty

5-Year

Miscellaneous

Additional Information

DC Input Voltage: 8-28V Alarm Inputs/Outputs: 8 Digital I/O: Yes Relays: 8 Power Over Ethernet: Yes PoE Class: 4 Operating Temperature: -30 to 55°C Country of origin: Poland. Country of origin is subject to change.

Compatibility

Axis Network Door Controllers: A1001 A1601

Environmental Certification

Environmentally Friendly

Yes

Package Contents
