CDVI RTE-AIR Architrave infrared touchless Exit Switch
Brand:
CDVI
ADI #:RTE-AIR
Model #: RTE-AIR

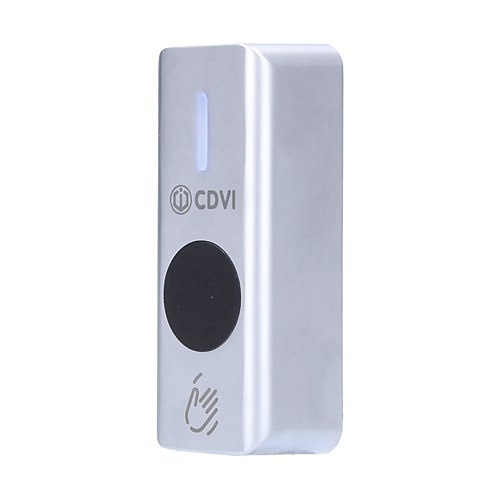

Name: CDVI RTE-AIR Architrave infrared touchless Exit Switch
Touchless infrared exit device
Adjustable infrared sensor - from 3 to 15cm activation range
Compact, narrow architrave, surface mount design
Product Overview
General Information
Main Features
Touchless infrared exit device
Adjustable infrared sensor - from 3 to 15cm activation range
Compact, narrow architrave, surface mount design
Two-colour LED status indicator - blue for standby, green for active
Single pole NO/NC/COM timed relay - adjustable between 0.1 and 30.0 sec
Information
Category : Access Control, Egress Devices, Products, Request to Exit Devices, Touchless Access Control
EAN Code : 3662211021228
Specifications
General Information
ADI Part Number
RTE-AIR
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
RTE-AIR
Packaged Quantity
1
Product Colour
Silver Metallic
Product Model
RTE-AIR
Product Name
Architrave Infrared Exit Switch
Product Series
RTE
Product Type
Exit Switch
Technical Information
Gang Type
Single Gang
Maximum Proximity Range
150 mm
Maximum Timer Duration
30 Second
Minimum Proximity Range
30 mm
Minimum Timer Duration
100 ms
Environmental Conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-20°C
Physical Characteristics
Application/Usage
College, Commercial, Door, Hospital, Industrial, Public Building, School, Sterile Environment
Color
Silver
Depth
23 mm
Height
80 mm
Material
Aluminum
Width
32 mm
Power Description
Input Voltage
12V DC, 24V DC
Product Information
Contact Type
NO/NC
Finishing
Aluminium
Mount Type
Surface Mount
Print/Message
Hand Wave Logo
Warranty
Limited Warranty
2 Year
Miscellaneous
Features
Infrared Receiver, LED Indicator, Single Pole, Surface Mount
