General Information

ADI Part Number

XNV-L6080

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

XNV-L6080/CEU

Product Model

XNV-L6080

Product Name

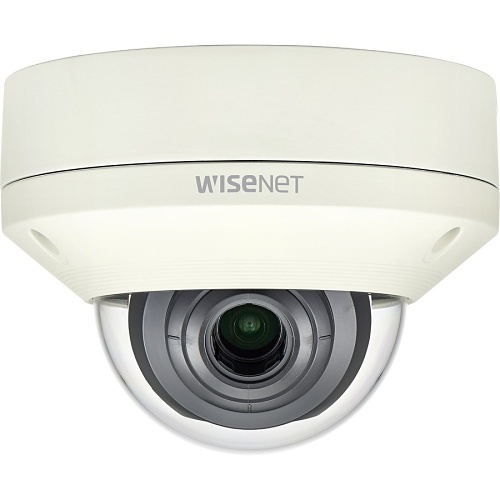

2M Vandal-Resistant Network Dome Camera

Product Series

X series

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele)

HD Recording

Yes

Lens Mount Type

Board Mount

Lens Type

Motorized varifocal

Maximum Aperture

f/2.9

Maximum Frame Rate

60 fps

Minimum Focal Length

3.20 mm

Optical Zoom

3.1x

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour, Monochrome

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0.003 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.2-10 mm

Lens Included

Yes

Maximum Focal Length

10 mm

Minimum Aperture

f/1.6

Physical Characteristics

Color

Ivory

Color Family

Ivory

Durability

Vandal Resistant

Form Factor

Dome

Height

118.5 mm

Weight (Approximate)

935 g

Product Information

Diameter

160 mm

Mount Type

Box Mount, Ceiling Mount, Pipe Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Features

Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Hanwha XNV-L6080 2MP IP Dome Camera, WDR, PoE, IK10, IP66
