General Information

ADI Part Number

SRXV2-2F3-IMD-IR

Brand Name

Pelco by Motorola Solutions

Manufacturer

Pelco by Motorola Solutions

Manufacturer Part Number

SRXV2-2F3-IMD-IR

Product Line

Sarix

Product Model

SRXV2-2F3-IMD-IR

Product Name

Sarix Value 2 Series Indoor Dome Camera

Product Series

Value 2

Product Type

Camera

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.7 mm

Night Vision

Yes

Night Vision Type

Infrared (IR)

Wide Dynamic Range

Yes

Camera

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP42

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1937 x 1097

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

0°C

Operating Humidity

0.9

Exposure

Minimum Illumination

0.03|0.01 lux

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.8 mm

Physical Characteristics

Form Factor

Dome

Height

120.6 mm

Weight (Approximate)

273 g

Width

111.5 mm

Power Description

Input Voltage

12V DC

Product Information

Length

109.2 mm

Mount Type

Surface Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5 Year

Miscellaneous

Environmental Certification

BIS, CE, CMIM, cUL, KC, NOM, RCM, RoHS, UKCA, UL

Indoor/Outdoor

Outdoor

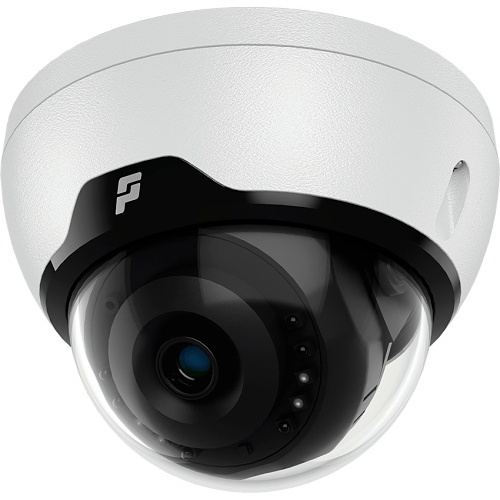

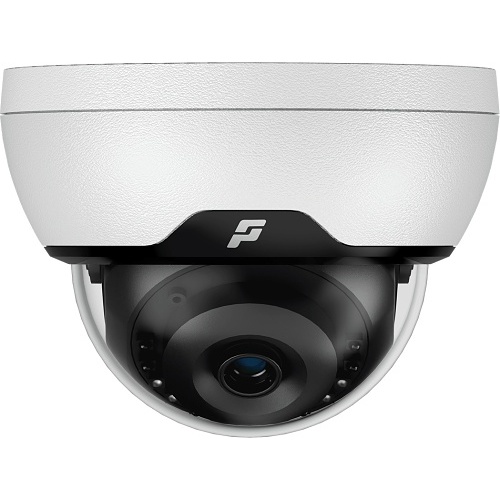

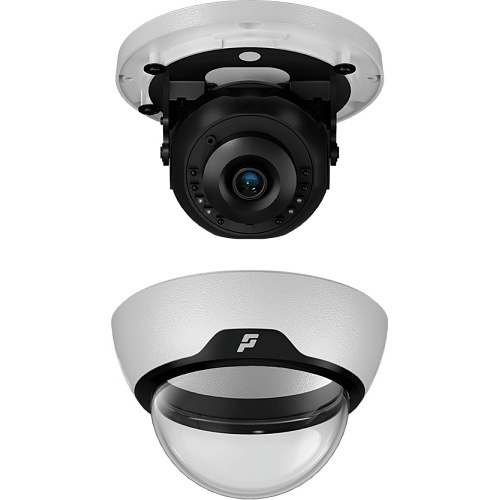

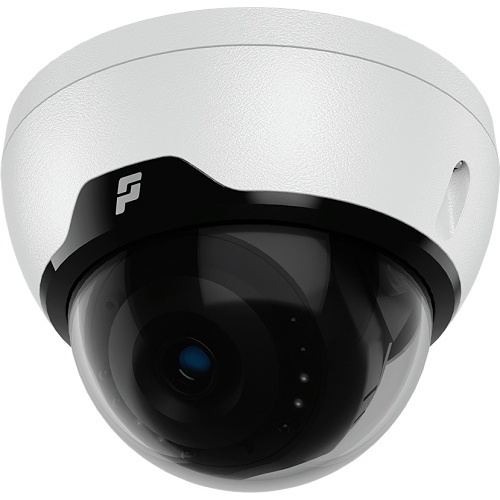

Pelco SRXV2-2F3-IMD-IR 2MP Indoor Dome Camera, 2.8mm Fixed Lens
