General Information

ADI Part Number

IBE129-1I

Brand Name

Pelco by Motorola Solutions

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

IBE129-1I

Product Line

Sarix

Product Model

IBE129-1l

Product Name

Sarix IBE129-1R Network Camera

Product Series

IBE

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

1.3MP

Field of View

Horizontal: 113.7-38.0°, Vertical: 61.1-21.4°

HD Recording

Yes

Lens Mount Type

Integrated

Lens Type

Varifocal

Maximum Aperture

f/1.3

Maximum Frame Rate

60 fps

Minimum Focal Length

3 mm

Night Vision

Yes

Optical Zoom

3x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour, Monochrome

Maximum Video Resolution

1280 x 960

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

2 Second

Shortest Shutter Speed

1/20000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3-9 mm

Lens Included

Yes

Maximum Focal Length

9 mm

Physical Characteristics

Durability

Impact Resistant, Tamper Resistant, Vandal Resistant

Form Factor

Bullet

Weight (Approximate)

940 g

Power Description

Input Voltage

12V DC, 24V AC

Product Information

Mount Type

Pole Mount, Surface Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Features

3D Noise Reduction, Alarm Detection, Audio Compression, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Ingress Protection, Microphone In, Password Protection, Privacy Protection, SD Card Local Storage

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

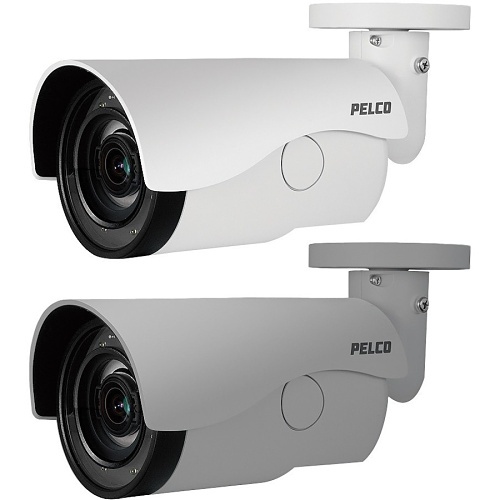

Pelco IBE129-1l 3MP Sarix Enhanced Indoor IR IP Bullet Camera, Fixed Lens 3-9mm
