General Information

ADI Part Number

2.0C-H6X-B

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

2.0C-H6X-B

Product Line

H6X

Product Model

2.0C-H6X-B

Product Name

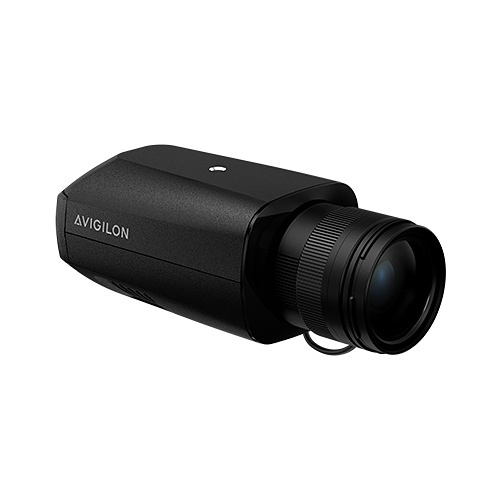

Avigilon - IP Cameras - Boxed Type - 2.0C-H6X-B

Product Type

Camera

Technical Information

Effective Camera Resolution

2MP

Lens Mount Type

Thread Mount

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-10°C

Operating Humidity

10-95%

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0.01 lux|0.003 lux

Shortest Shutter Speed

1/15000 Second

Lens

Lens Included

Yes

Physical Characteristics

Durability

Weatherproof

Height

63 mm

Weight (Approximate)

0.55 kg

Width

75 mm

Power Description

Input Voltage

12-24V DC

Product Information

Length

122 mm

Mount Type

Box Mount

Storage

Storage Type

Memory Card

Video

Horizontal Resolution

1920

Warranty

Limited Warranty

5 Year

Miscellaneous

Environmental Certification

CE, RoHS

Environmentally Friendly

Yes

Features

AdaptAI Video Analytics, Automatic IR Cut Filter, Dynamic Privacy Masking, Outdoor Ready Design

Indoor/Outdoor

Outdoor

Avigilon Unity 2.0C-H6X-B 2MP Box Camera, WDR, HDSM SmartCodec
