General Information

ADI Part Number

02650-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02650-001

Product Model

Q2101-TE

Product Name

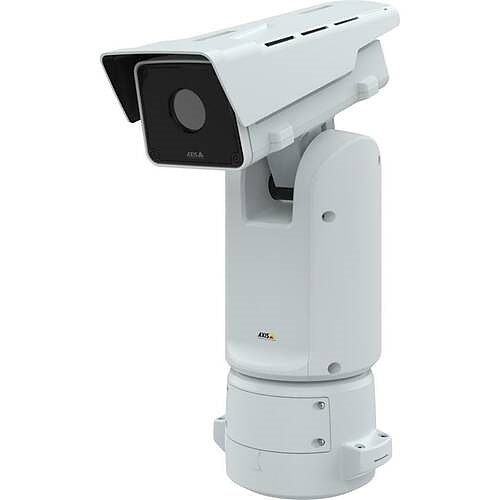

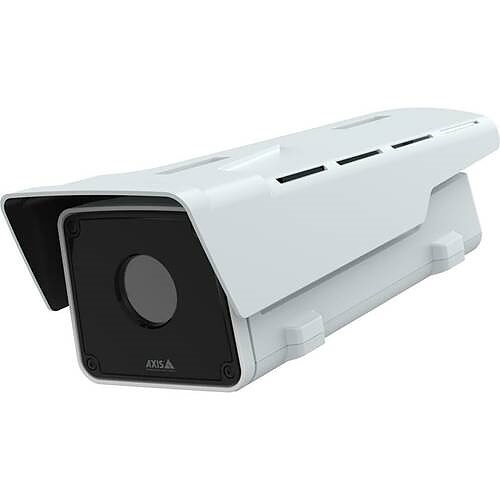

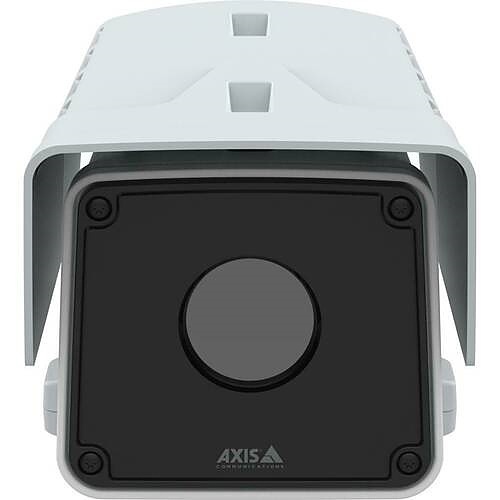

Q2101-TE Thermal Camera

Product Type

Thermal Imaging Cameras

Technical Information

Connectivity Technology

Wired

Field of View

Horizontal: 55°

HD Recording

Yes

Lens Type

Fixed

Maximum Frame Rate

30 fps

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

768 x 576

Thermal Image Sensor Type

Uncooled Microbolometer

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

13 mm, 19 mm, 7 mm

Lens Included

Yes

Maximum Thermal Focal Length

7 mm

Physical Characteristics

Color

White

Durability

Impact Resistant

Weight (Approximate)

3.30 kg

Power Description

Input Voltage

28V DC

Storage

Storage Type

Memory Card

Video

Thermal Video Resolution

384 x 288

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

EU RoHS, REACH, RoHS

Environmentally Friendly

Yes

Features

Audio Detection, Built-in IR LED, Fire Detection, Human Detection, Motion Detection, SD Card Local Storage, Vehicle Detection, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Package Contents

Q2101-TE Thermal Camera
Installation guide
TORX T30 bit
TORX T20 screwdriver
Terminal block connectors
Connector guard
Cable gaskets
Owner authentication key

AXIS Q2101-TE Thermal IP Camera, 7mm Lens, 30fps, IP67, White
