General Information

ADI Part Number

TNM-C4942TDR

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

TNM-C4942TDR

Product Model

TNM-C4942TDR

Product Name

Bi-spectrum AI IR Thermal Camera

Product Series

T series

Product Type

Thermal Camera

Technical Information

Effective Camera Resolution

8MP

Field of View

H:112.1°(Wide)~47.5°(Tele); V:58.0°(Wide)~26.6°(Tele); D:137.5°(Wide)~54.6°(Tele), Horizontal: 50.0°; Vertical: 37.0°; Diagonal: 63.8°

Lens Type

Motorized varifocal

Maximum Aperture

f/1.3

Maximum Frame Rate

30 fps

Minimum Focal Length

4.4 mm

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/5 s

Minimum Illumination

0.06 lux|0.004 lux|0 lux

Shortest Shutter Speed

1/12000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4.4-9.3 mm, 9.1

Lens Included

Yes

Maximum Focal Length

9.3 mm

Minimum Aperture

f/2.15

Physical Characteristics

Weight (Approximate)

4.53 kg

Power Description

Input Voltage

12V DC

Storage

Storage Type

Memory Card

Video

Horizontal Resolution

3840

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

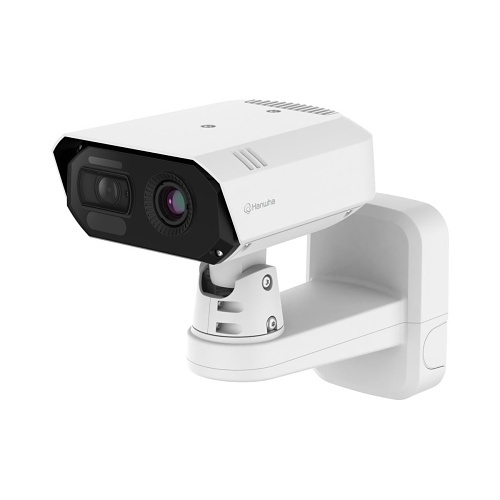

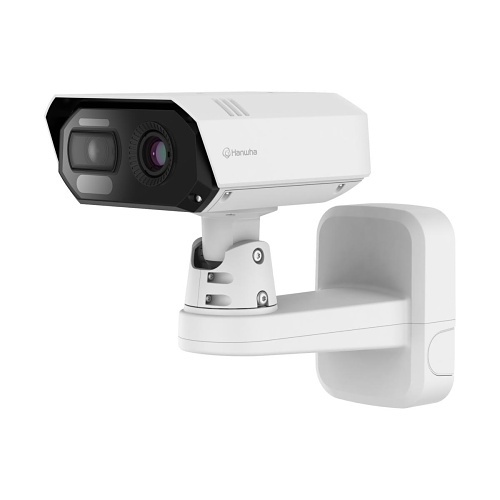

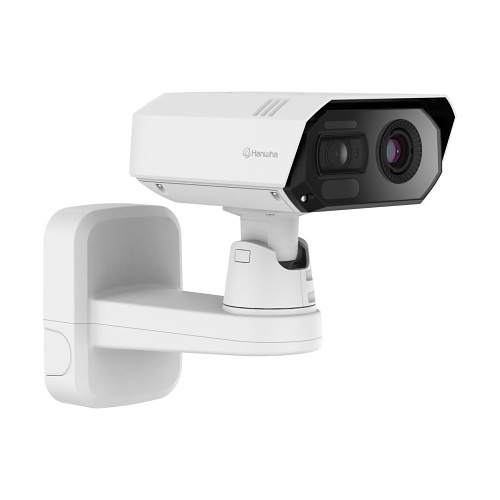

Hanwha TNM-C4942TDR Bi-spectrum AI IR Thermal Camera
