General Information

ADI Part Number

TI-PG50

Brand Name

TRENDnet

Manufacturer

TRENDnet

Manufacturer Part Number

TI-PG50

Product Line

Industrial

Product Model

TI-PG50

Product Name

5-Port Industrial Gigabit PoE + DIN-Rail Switch

Product Type

Ethernet Switch

Technical Information

Media Type Supported

Twisted Pair

Power Consumption

2.24W

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

Interfaces/Ports

Port/Expansion Slot Details

1 x Gigabit Ethernet Network, 4 x Gigabit Ethernet PoE+

Total Number of Network Ports

5

Media & Performance

Network Technology

10/100/1000Base-T

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Depth

177.8 mm

Form Factor

DIN Rail Mount, Wall Mount

Height

76.2 mm

Material

Metal

Weight (Approximate)

362.9 g

Width

101.6 mm

Power Description

Input Voltage

48V DC, 56V DC

Plug/Connector Type

Terminal Block

PoE Budget

120W

Power Source

Power Supply

Redundant Power Supply Supported

Yes

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Environmental Certification

CE, Freefall (IEC 60068-2-32), Shock (IEC 60068-2-27), Vibration

Features

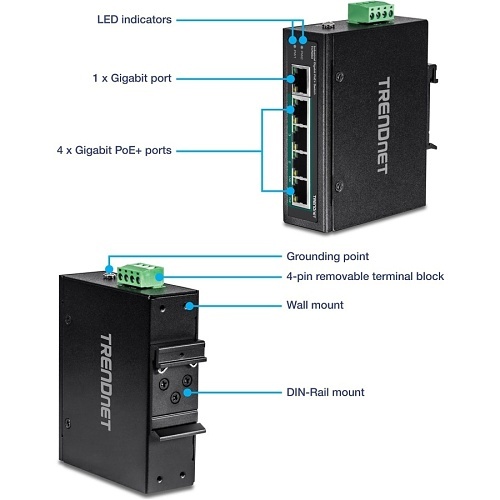

1 x Gigabit port, 10Gbps switching capacity, 120W PoE power budget, 4 x Gigabit PoE ports, Hardened IP30 rated metal switch, Includes DIN-rail and wall mounts, Operating temperature range of -40 to 75 deg C (-40 to 167 deg F), Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048), Redundant power inputs with overload current protection

Package Contents

TI-PG50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit

TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch
