General Information

ADI Part Number

TI-ELC50

Brand Name

TRENDnet

Manufacturer

TRENDnet

Manufacturer Part Number

TI-ELC50

Product Model

TI-ELC50

Product Name

5-Port Industrial Fast Ethernet DIN-Rail Mini Switch

Product Type

Ethernet Switch

Technical Information

Media Type Supported

Twisted Pair

Power Consumption

1.23W

Certifications

RoHS Compliant

Compliant

Interfaces/Ports

Network (RJ-45)

Yes

Port/Expansion Slot Details

5 x 10/100Base-T Ethernet Ports

Total Number of Network Ports

5

Media & Performance

Network Technology

10/100Base-T

Network & Communication

Ethernet Technology

Fast Ethernet

Layer Supported

2

Networking Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Depth

59.9 mm

Form Factor

DIN Rail Mount, Wall Mount

Height

25.4 mm

Material

Metal

Product Material

Metal

Weight (Approximate)

214 g

Width

100.3 mm

Power Description

Input Voltage

60V DC, 9.6V DC

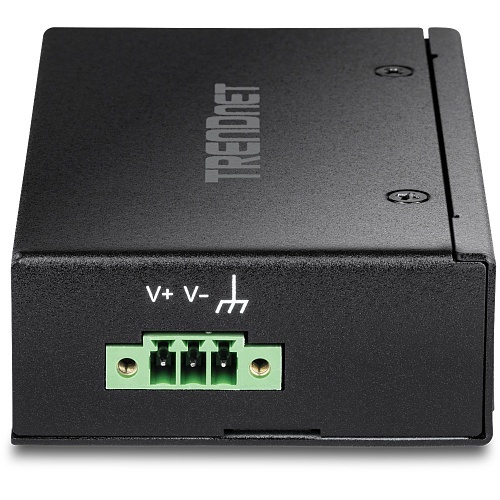

Plug/Connector Type

Terminal Block (3 Wire)

Power Source

DC, Power Supply

Warranty

Limited Warranty

2 Year

Miscellaneous

Environmental Certification

CE, EFT 2KV, ESD 6KV, Freefall (EN 60068-2-31), LVD, Shock (EN 60068-2-27), Surge 2KV, Vibration (EN 60068-2-6)

Features

IP30

Package Contents

5-Port Industrial Fast Ethernet DIN-Rail Mini Switch
Quick Installation Guide
Removable terminal block
DIN-Rail and Wall Mount Kit

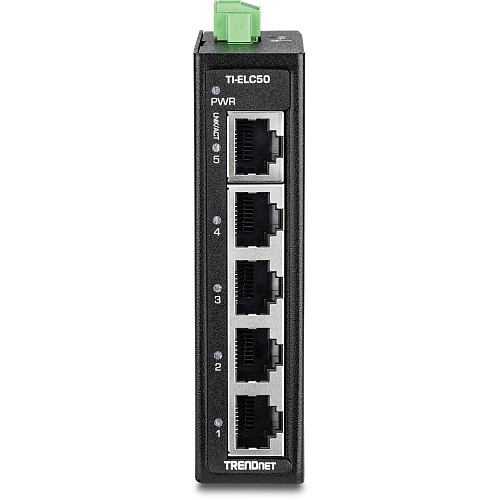

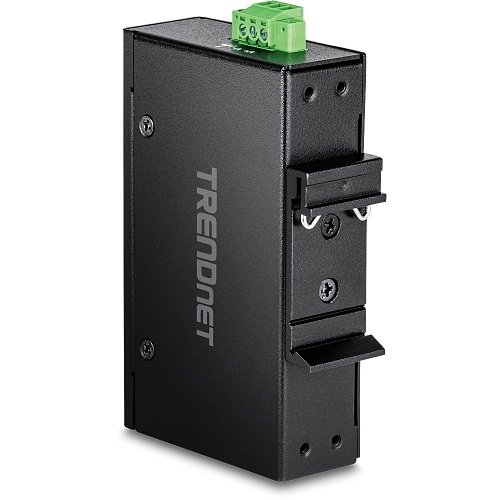

TRENDnet TI-ELC50 5-Port Industrial Fast Ethernet DIN-Rail Mini Switch

Product Documents and Resources
