CDVI RTEPTO Large all-active PUSH TO OPEN Exit Button, Surface Mount

Brand: CDVI
ADI #:RTEPTO Model #: RTE-PTO  Name: CDVI RTEPTO Large all-active PUSH TO OPEN Exit Button, Surface Mount
  • High quality stainless steel
  • Large all-active target area
  • Surface mount

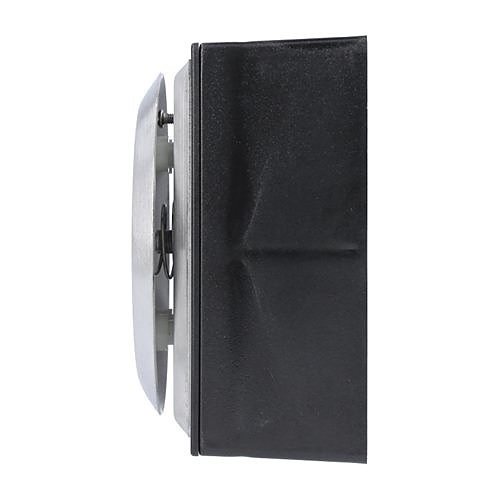

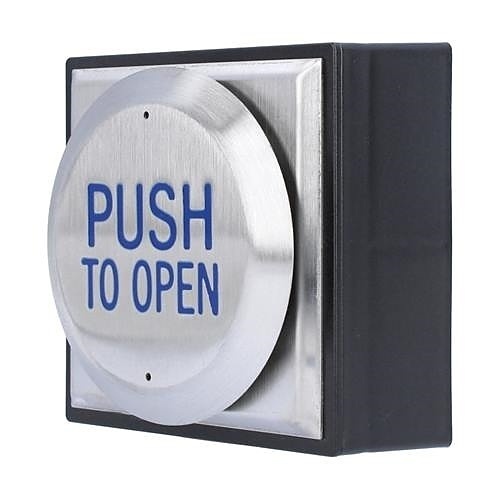

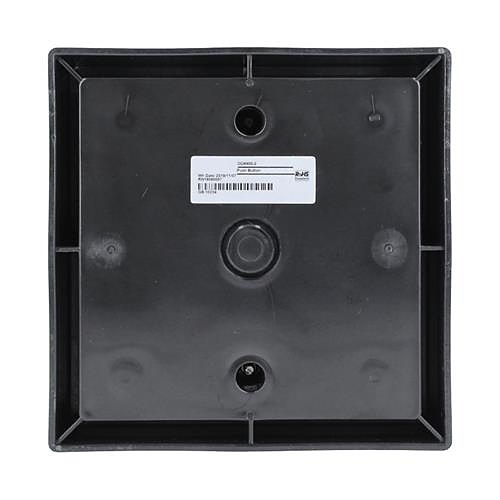

Image of RTEPTO

Product Overview

General Information

Our range of "All Active" exit switches have a brushed stainless steel faceplate and are supplied complete with a sturdy ABS surface back box.

"All Active" means the complete surface area of the face will activate the switch. This is ideal for those who have difficulty targetting a smaller button. and is particularly suited for DDA compliance and general high traffic areas such as hospitals, public buidings and colleges.

All models include a heavy-duty micro switch with a common, normally open & normally closed changeover contact.

The RTEPTO, RTEPTOD & RTED are suitable for accepting the option of a universal radio transmitter, which adapts the switches to be a wireless device.

Main Features
  • High quality stainless steel
  • Large all-active target area
  • Surface mount
  • UK back-box format
  • Suitable for DDA environments
Information
Category : Access Control, Door Hardware, Door Pull & Push Plates, Products

Specifications

General Information

ADI Part Number
RTEPTO
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
RTEPTO
Packaged Quantity
1
Product Name
RTEPTO Large All Active Exit Switch, "PUSH TO OPEN"
Product Series
RTE
Product Type
Push Button

Technical Information

Button Size
115 mm
Gang Type
Single Gang
Number of Buttons
1

Physical Characteristics

Application/Usage
College, Commercial, Door, Industrial, Public Building, School
Color
Silver
Depth
72 mm
Durability
Heavy Duty
Height
130 mm
Material
Stainless Steel
Weight (Approximate)
0.48 kg
Width
130 mm

Product Information

Finishing
Stainless Steel
Mount Type
Surface Mount
Print/Message
Push To Open

Warranty

Limited Warranty
5 Year

Miscellaneous

Features
Heavy Duty, Surface Mount
