CDVI PSMB123 12V 3A Switching Power Supply, Possibility to Connect a Backup Battery

Brand: CDVI
ADI #:PSMB123 Model #: PSMB123  Name: CDVI PSMB123 12V 3A Switching Power Supply, Possibility to Connect a Backup Battery
  • LED status indicator
  • Additional battery backup charging circuit (B7.5 battery)
  • Built-in short circuit protection

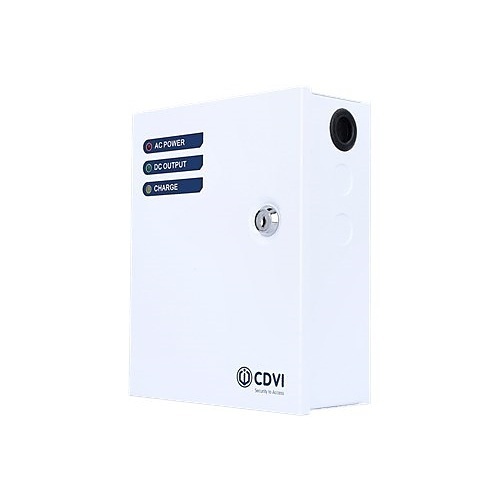

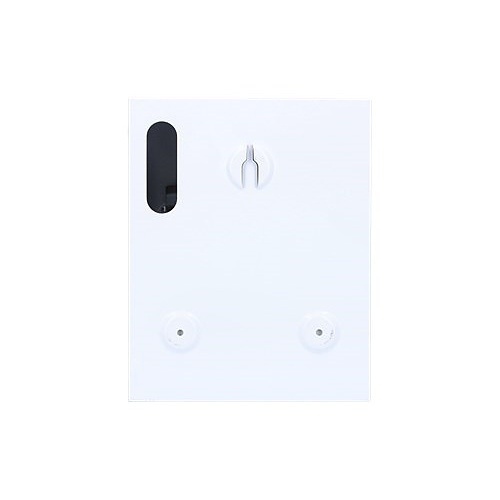

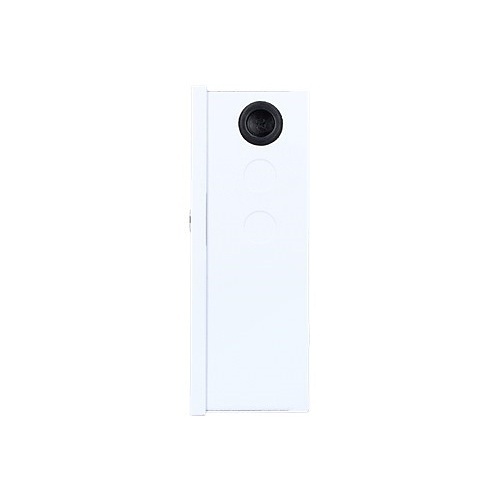

Image of PSMB123

Product Overview

General Information

The PSMB123 is a switch mode power supply with a 3A rated current. It is ideal for access control and general applications requiring standby battery capability. This unit has a regulated, highly stable output supplying full rated current to load and a universal mains voltage input range (190 to 265Vac).

Main Features
  • LED status indicator
  • Additional battery backup charging circuit (B7.5 battery)
  • Built-in short circuit protection
  • Sturdy lockable metal case
  • 3A power supply
Information
Category : Access Control, Batteries & Power Supplies, Power Products, Power Supplies, Power Supplies & Boards, Products

Specifications

General Information

ADI Part Number
PSMB123
Amperage
5A
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
PSMB123
Packaged Quantity
1
Product Model
PSMB123
Product Name
12Vdc 3A Switch Mode Power Supply With battery Charger
Product Series
PSMB
Product Type
Power Supply

Technical Information

Output Voltage
13.8V DC

Physical Characteristics

Depth
71 mm
Height
202 mm
Weight (Approximate)
0.94 kg
Width
163 mm

Power Description

Input Voltage
190V AC, 265V AC
Output Current
3A

Warranty

Limited Warranty
10 Year
