General Information

ADI Part Number

IHDBW3541E-AS-S22

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

IHDBW3541E-AS-S22

Product Line

WizSense

Product Model

DH-IPC-HDBW3541E-AS-S2

Product Name

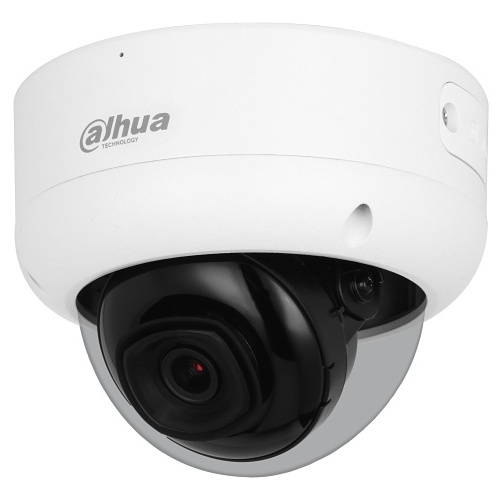

5MP IR Fixed-focal Dome WizSense Network Camera

Product Series

WizSense

Product Type

Dome Cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

HD Recording

Yes

Lens Type

Fixed

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Colour

Number of IR LEDs

3

Wide Dynamic Range

Yes

Camera

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2960 x 1668

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Physical Characteristics

Color

White

Durability

Water Resistant

Form Factor

Dome

Weight (Approximate)

516 g

Power Description

Input Voltage

12V DC

Product Information

Diameter

111.7 mm

Mount Type

Ceiling Mount, Junction Box Mount, Pole Mount, Vertical Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Features

Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Highlight Compensation (HLC), Region of Interest, SD Card Local Storage, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Dahua DH-IPC-HDBW3541EP-AS-0280B-S2 WizSense Series, IP67 5MP Fixed Focal, IR 50M IP Network Dome Camera
