General Information

ADI Part Number

HHFW3231EPZDVP27S2

Brand Name

Dahua Technology

Manufacturer

Dahua Technology

Manufacturer Part Number

DH-HAC-HFW3231EP-Z-DP-VP-27135-S2

Product Model

DH-HAC-HFW3231EP-Z-DP-VP-27135-S2

Product Name

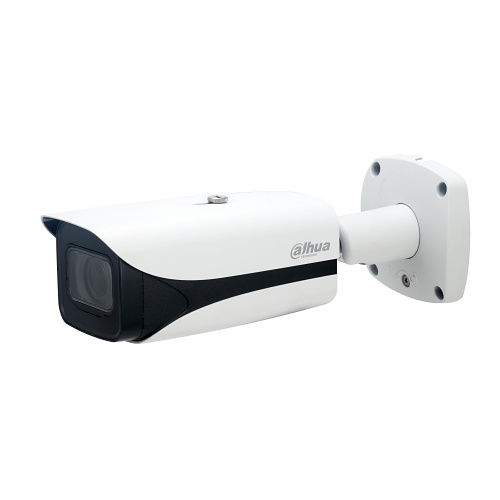

2MP Starlight HDCVI IR Bullet Camera

Product Series

WizSense

Product Type

Bullet Camera

weight

1.09 kg

Technical Information

Effective Camera Resolution

2MP

Field of View

Diagonal: 131°-35°, Horizontal: 109°-30°, Vertical: 56°-17°

Lens Type

Motorised Varifocal

Maximum Aperture

F/13.5

Maximum Frame Rate

30 fps

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/25 s|1/30 s

Minimum Illumination

0 lux

Shortest Shutter Speed

1/100000 s

Lens

Maximum Focal Length

13.5 mm

Physical Characteristics

Height

339.1 mm

Power Description

Input Voltage

12V DC

Product Information

Length

273.2 mm

Mount Type

Ceiling Mount, Vertical Pole Mount, Wall Mount

Miscellaneous

Environmental Certification

, ANSI C63.4-2014)

Impact Protection Rating

IK10
