General Information

ADI Part Number

HHFW1200TPA36BS6

Brand Name

Dahua Technology

Manufacturer

Dahua Technology

Manufacturer Part Number

DH-HAC-HFW1200TP-A-0360B-S6

Product Model

DH-HAC-HFW1200TP-A-0360B-S6

Product Name

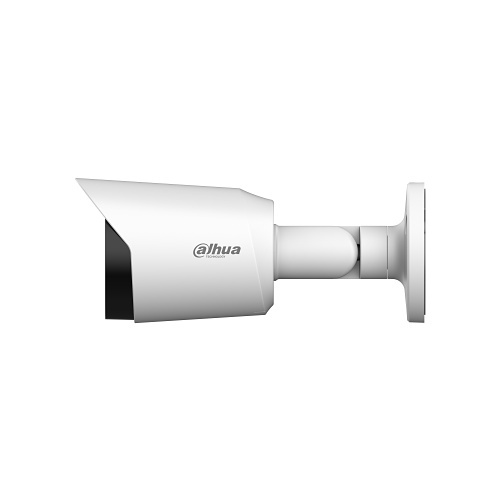

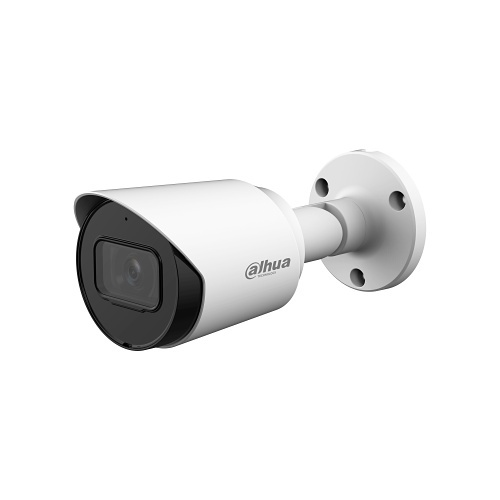

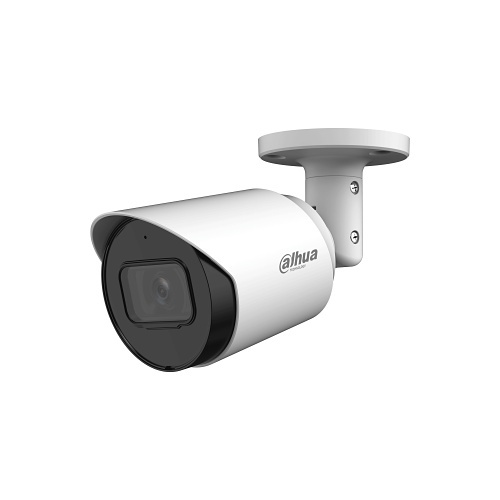

2MP IR HDCVI Fixed-focal Bullet Camera

Product Series

Lite

Product Type

Bullet Camera

weight

0.34 kg

Technical Information

Effective Camera Resolution

2MP

Field of View

Diagonal: 104°, Horizontal: 83°, Vertical: 48°

Lens Type

Fixed

Maximum Aperture

f/2

Maximum Frame Rate

30 fps

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/25 s|1/30 s

Minimum Illumination

0 lux

Shortest Shutter Speed

1/100000 s

Lens

Maximum Focal Length

3.6 mm

Physical Characteristics

Color

White

Power Description

Input Voltage

12V DC

Product Information

Diameter

70.1 mm

Mount Type

Ceiling Mount, Vertical Pole Mount, Wall Mount

Miscellaneous

Environmental Certification

CE-EMC: EN 55032, CE-LVD: EN 62368-1, EN 55035, UL: UL62368-1
