General Information

ADI Part Number

HHDW2509TPALED28D

Brand Name

Dahua Technology

Manufacturer

Dahua Technology

Manufacturer Part Number

DH-HAC-HDW2509TP-A-LED-0280B-DIP

Product Model

DH-HAC-HDW2509TP-A-LED-0280B-DIP

Product Name

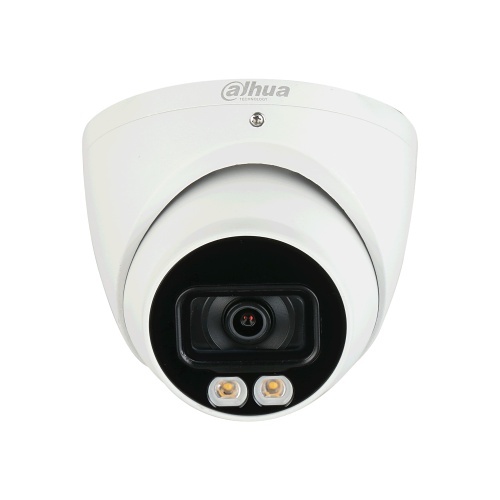

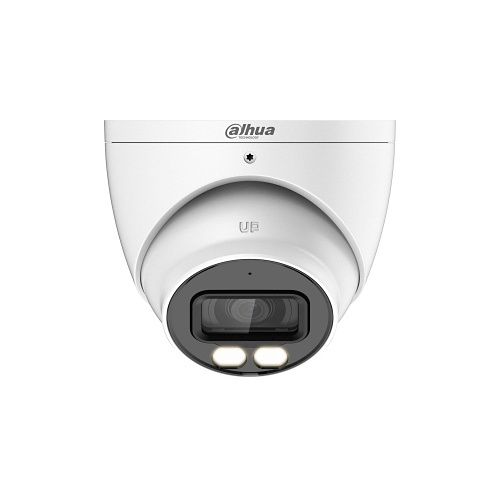

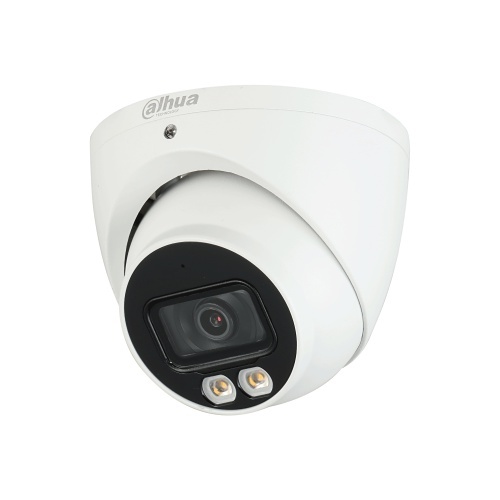

5MP Full-color HDCVI Eyeball Camera

Product Series

Pro

Product Type

Eyeball Camera

weight

0.49 kg

Technical Information

Effective Camera Resolution

5MP

Field of View

Diagonal: 131°, Horizontal: 111°, Vertical: 57°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

25 fps

Night Vision

Yes

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2880 x 1620

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Exposure

Longest Shutter Speed

1/3 s|1/4 s

Minimum Illumination

0 lux

Shortest Shutter Speed

1/100000 s

Lens

Focal Length

2.8 mm

Maximum Focal Length

2.8 mm

Physical Characteristics

Color

White

Height

93.6 mm

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

106 mm

Mount Type

Wall Mount

Miscellaneous

Environmental Certification

), , ANSI C63.4-2014), CE (EN55032, EN55024, EN50130-4), UL (UL60950-1
