General Information

ADI Part Number

HHDW1200TLMPA28BS6

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-HAC-HDW1200TLMP-A-0280B-S6

Product Model

DH-HAC-HDW1200TLMP-A-0280B-S6

Product Name

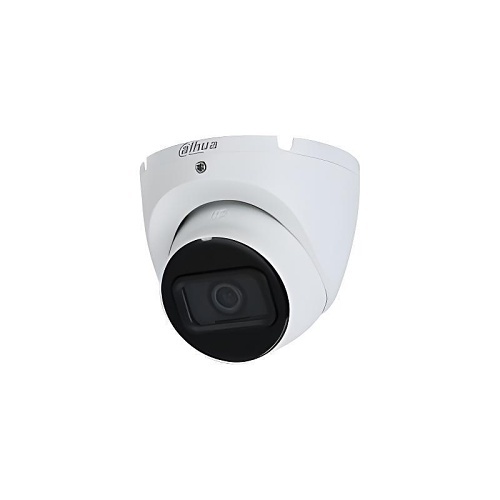

DH-HAC-HDW1200TLMP-A-0280B-S6 2MP IR HDCVI Fixed-focal Eyeball Camera

Product Series

Lite

Product Type

Eyeball Camera

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 83° Vertical: 48° Diagonal: 105°

Lens Mount Type

M12-mount

Lens Type

Fixed

Maximum Aperture

f/2.0

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8 mm

Night Vision

Yes

Night Vision Type

Colour

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/25 Second|1/30 Second

Minimum Illumination

0.01 lux|0.001 lux

Shortest Shutter Speed

1/100000 Second|1/100000 Second

Lens

Focal Length

3.6 mm

Lens Included

Yes

Maximum Focal Length

3.6 mm

Physical Characteristics

Form Factor

Eyeball

Height

85.7 mm

Weight (Approximate)

0.33 kg

Power Description

Input Voltage

12V DC

Product Information

Diameter

94 mm

Mount Type

Ceiling Mount, In-Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Video

Horizontal Resolution

1920

Miscellaneous

Environmental Certification

CE, UL

Environmentally Friendly

Yes

Features

3.6 mm fixed lens (2.8 mm optional), 30 m illumination distance., CVI/CVBS/AHD/TVI switchable., IP67, 12 VDC., Max. 30 fpsat1080p., Smart IR Illumination., Super Adapt.

Indoor/Outdoor

Outdoor

Dahua DH-HAC-HDW1200TLMP-A-0280B-S6 2MP HDCVI IR Eyeball Camera, IP67
