General Information

ADI Part Number

HC35WB3R3

Brand Name

Honeywell Commercial Security

Manufacturer

Honeywell International, Inc

Manufacturer Part Number

HC35WB3R3

Product Line

MB Secure

Product Model

HC35WB5R3

Product Name

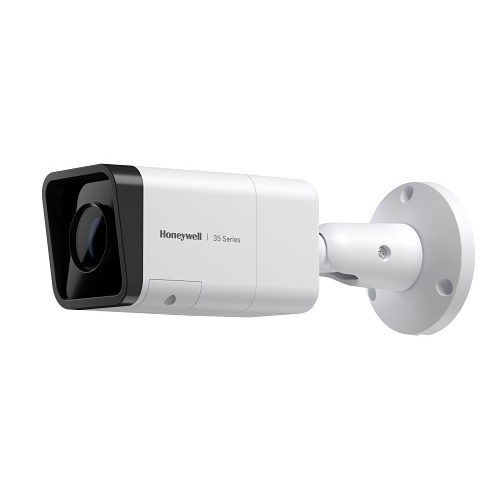

3MP/5MP/8MP IP WDR IR Fixed Bullet Camera

Product Series

35

Product Type

Bullet Camera

weight

700 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

3MP

Field of View

Horizontal: 88°, Vertical: 47°

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Colour

Optical Zoom

5x

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66, IP67

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

2304 x 1296

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/8 Second

Shortest Shutter Speed

1/32000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

White

Durability

Dust Proof, Water Proof

Form Factor

Bullet

Height

197.3 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

87 mm

Mount Type

Corner Mount, Junction Box Mount, Pole Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmentally Friendly

Yes

Features

2D Noise Reduction, 3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Gain Control, Highlight Compensation (HLC), Motion Detection, Region of Interest, SD Card Local Storage, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Honeywell HC35WB5R3 35 Series, 3MP WDR IR Fixed Bullet Camera, 120 dB, 2.8 mm, PoE, 12VDC, IK10, White
