Vanco EV-IRKIT6 Evolution Three Zone Six Source IR Kit
Brand:
Vanco
ADI #:EV-IRKIT6
Model #: EV-IRKIT6
Name: Vanco EV-IRKIT6 Evolution Three Zone Six Source IR Kit
Allows for the Transmission of IR Signals from up to 3 IR receivers to 6 dual emitters
IR Receiver works in most lighting environments- including CFL
A total of 6 IR dual emitters can be supported for up to 12 sources
Product Overview
General Information
Main Features
Allows for the Transmission of IR Signals from up to 3 IR receivers to 6 dual emitters
IR Receiver works in most lighting environments- including CFL
A total of 6 IR dual emitters can be supported for up to 12 sources
IR Receiver Frequency Range: 34 kHz to 60 kHz- RC-MM codes
IR Emitter Frequency Range: 38 kHz to 56 kHz
Range: Receiving distance – 25ft; Emitting distance – 4-8in
Power Consumption: 12VDC- 30mA max
Information
Category : Commercial Displays, Pro Accessories & Mounts, Pro AV, Products
Specifications
General Information
ADI Part Number
EV-IRKIT6
Brand Name
Vanco
Manufacturer
Vanco
Manufacturer Part Number
EV-IRKIT6
Packaged Quantity
5
Product Line
Evolution
Product Model
EV-IRKIT6
Product Name
Evolution Three Zone Six Source IR Kit
Product Series
IR Kit
Physical Characteristics
Application/Usage
Most lighting environments including CFL
Depth
45.72 mm
Height
22.86 mm
Width
71.12 mm
Miscellaneous
Package Contents

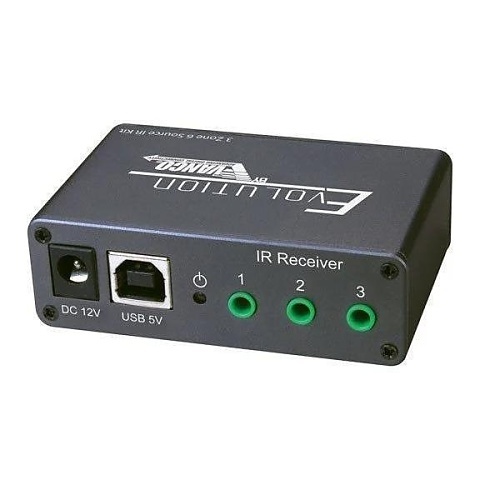

(1) Connecting Block

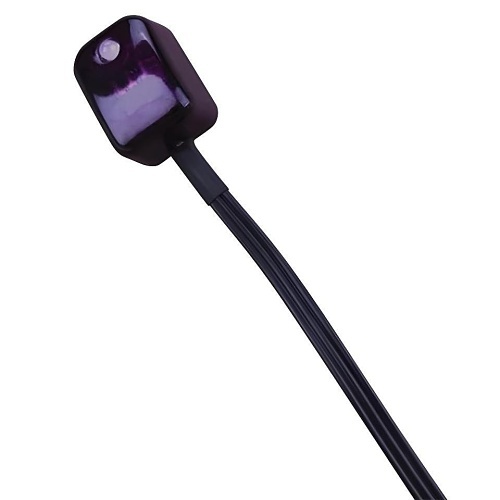

(1) IR Receiver pigtail

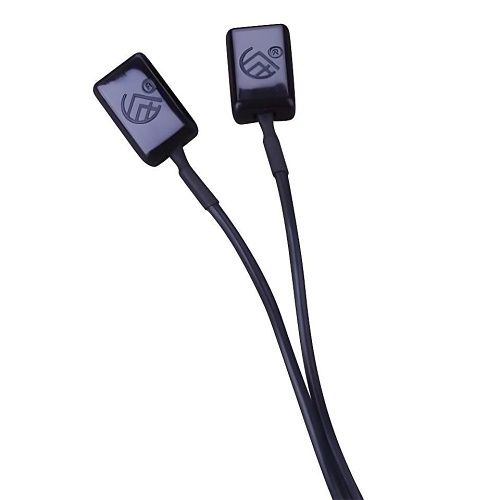

(1) IR dual Emitter pigtail
(1) 12V DC Power Supply
(1) User Manual
