D-Link DSS-200G-28MP-B DSS-200G Series 28-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch

Brand: D-Link
ADI #:DSS-200G-28MP-B Model #: DSS-200G-28MP/B  Name: D-Link DSS-200G-28MP-B DSS-200G Series 28-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch
  • High PoE budgets and support for IEEE 802.3at 30W PoE
  • 6 kV Surge protection on all PoE ports
  • Alarm Port and four-stage PoE usage indicator light

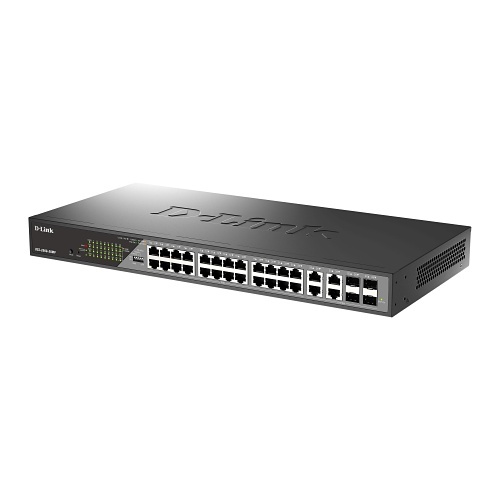

Image of DSS-200G-28MP-B

Product Overview

General Information

The DSS-200G Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution to your surveillance requirements.

Main Features
  • High PoE budgets and support for IEEE 802.3at 30W PoE
  • 6 kV Surge protection on all PoE ports
  • Alarm Port and four-stage PoE usage indicator light
  • Smart Fan design
  • Surveillance traffic optimization
  • Auto-detect ONVIF devices
  • Built-in SNMP MIB
  • Surveillance VLAN
  • Easy deployment with automatic configuration
Information
Category : Data Comm & Networking, Hubs, Routers & Switches, Network Switches, Networking Devices, Products, Video Surveillance

Specifications

General Information

ADI Part Number
DSS-200G-28MP-B
Brand Name
D-Link
Manufacturer
D-Link
Manufacturer Part Number
DSS-200G-28MP-B
Package Type
Retail
Product Model
DSS-200G-28MP-B
Product Name
D-Link 28-Port Gigabit Smart Managed High Power PoE+ Switch | 24 PoE+ Ports (370W ) + 4 Combo SFP Ports | NDAA Compliant
Product Series
DSS-200G
Product Type
Switch and Bridge

Technical Information

Media Type Supported
Optical Fiber, Twisted Pair
Power Consumption
267.5W

Interfaces/Ports

Port/Expansion Slot Details
24 x Gigabit Ethernet PoE, 4 x Gigabit Ethernet Combo
Total Number of Network Ports
28

Media & Performance

Network Technology
10/100/1000Base-T, 1000Base-X

Network & Communication

Ethernet Technology
Gigabit Ethernet
Networking Standards
IEEE 802.3af, IEEE 802.3at

Physical Characteristics

Depth
208 mm
Height
44 mm
Weight (Approximate)
2.05 kg
Width
440 mm

Power Description

Frequency
50 Hz|60 Hz
Input Voltage
100-240V DC
PoE (RJ-45) Port
Yes
PoE Budget
370W
Power Source
AC, PoE, Power Supply

Warranty

Limited Warranty
Lifetime

Miscellaneous

Features
6 kV surge protection on all PoE ports, Alarm Port and four-stage PoE usage indicator light, Auto-detect ONVIF devices, Built-in SNMP MIB, Easy deployment with automatic configuration, High PoE budgets and support for IEEE 802.3at 30W PoE, NDAA Compliant, Smart Fan design, Surveillance traffic optimization, Surveillance VLAN
