General Information

ADI Part Number

DMS-105-B

Brand Name

D-Link

Manufacturer

D-Link

Manufacturer Part Number

DMS-105-B

Product Model

DMS-105-B

Product Name

5-Port 2.5G Multi-Gigabit Desktop Switch

Product Type

Switch and Bridge

Technical Information

Media Type Supported

Twisted Pair

Power Consumption

4.92 W

Certifications

RoHS Compliant

Compliant

Interfaces/Ports

Port/Expansion Slot Details

5 x 2.5 Gigabit Ethernet Network Port

Total Number of Network Ports

5

Management & Protocols

Manageable

No

Media & Performance

Network Technology

2.5GBase-T

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Depth

100.5 mm

Height

28 mm

Material

Metal

Product Material

Metal

Weight (Approximate)

0.23 kg

Width

82 mm

Power Description

Input Voltage

12 V

Power Source

Power Adapter

Warranty

Limited Warranty

Lifetime

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

25 Gbps switching capacity, D-Link Limited Lifetime Warranty after Registration, Durable metal housing, Energy efficient, fanless, Ideal for Wi-Fi 6, gaming, and other high-speed applications, IGMP Snooping, NDAA Compliant, Plug and Play installation, QoS and Flow Control, x5 2.5Gbps Ethernet ports

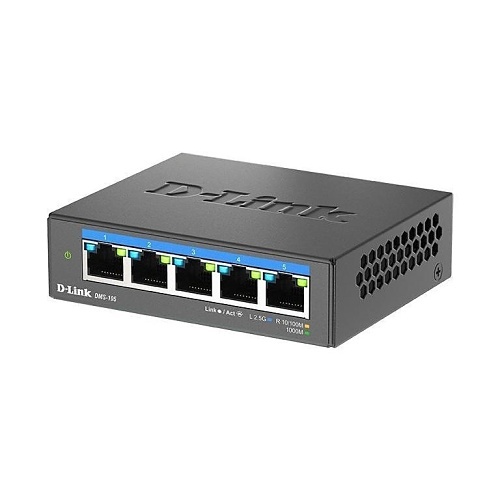

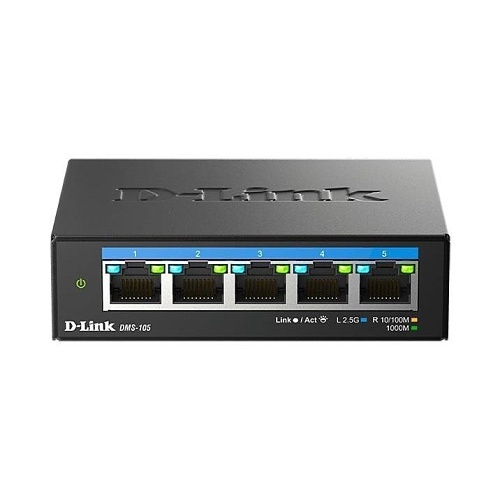

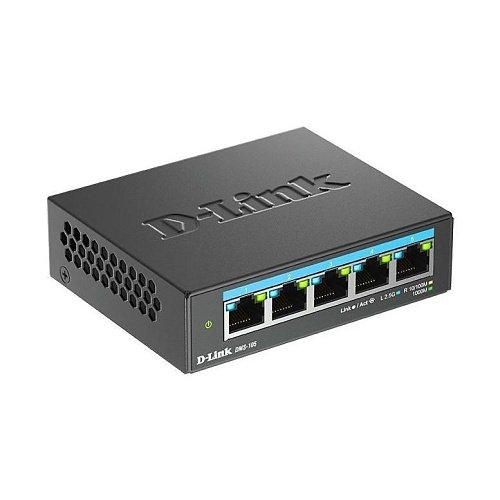

D-Link DMS-105-B 5-Port 2.5G Multi-Gigabit Desktop Switch
