CDVI CDV-PC7 Power/bus combiner Module for 2EASY 2-Wire video Door entry systems

Brand: CDVI
ADI #:CDV-PC7 Model #: CDV-PC7  Name: CDVI CDV-PC7 Power/bus combiner Module for 2EASY 2-Wire video Door entry systems
  • Easy plug-in bus connection
  • Standard AC input / full range
  • Multi-protection: short circuit, overload, & over-current

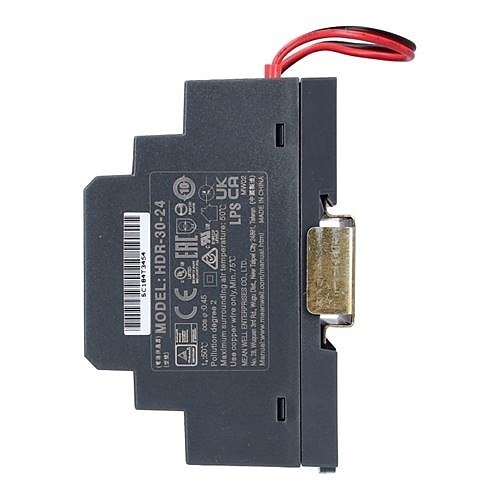

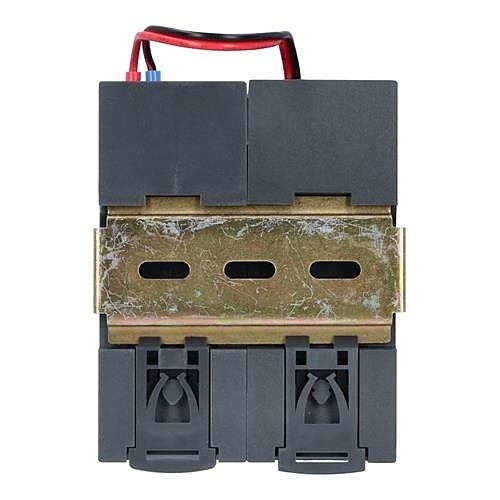

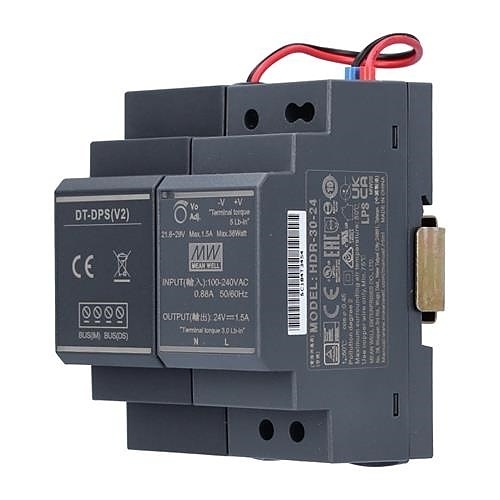

Image of CDV-PC7

Product Overview

General Information

The PC6 is a power/bus combiner unit. It is designed for the 2EASY 2-Wire system to supply power to the door station and internal monitor as well as any other accessories connected to the bus. It can support up to 4 monitors and 4 entry panels on a single user system.

Main Features
  • Easy plug-in bus connection
  • Standard AC input / full range
  • Multi-protection: short circuit, overload, & over-current
  • Built-in PSU and DPS
  • DIN rail mount
  • Note: The CDV-PC7 has replaced the previous model, the CDV-PC6
Information
Category : Access Control, Batteries & Power Supplies, Power Products, Power Supplies, Power Supplies & Boards, Products

Specifications

General Information

ADI Part Number
CDV-PC7
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
CDV-PC7
Packaged Quantity
1
Product Model
CDV-PC7
Product Name
Powered Loop Module
Product Series
2EASY
Product Type
Combiner Module

Technical Information

Device Supported
Door Station, Monitor
Output Voltage
28V DC

Physical Characteristics

Application/Usage
Apartment, Commercial, Intercom, Residential, Video Intercom
Depth
59 mm
Height
98 mm
Thickness
59 mm
Weight (Approximate)
0.55 kg
Width
70 mm

Power Description

Input Voltage
240V AC
Power Source
AC

Product Information

Length
70 mm
Mount Type
DIN Rail Mount

Miscellaneous

Additional Information
100-240V AC Input Voltage|50-60Hz Input Frequency|28V DC Output Voltage|1.5A Ouput Current|-100 to 500 C Temperature|Max 230V AC at 1.5 A
Compatibility
2EASY 2-wire Bus Video Entry System
Environmentally Friendly
Yes
Features
DIN rail mount, Easy plug-in bus connection, Protected against short circuit, overload, and over-current, Supports up to 4 monitors and 4 door stations
Indoor/Outdoor
Indoor
