General Information

ADI Part Number

327800897

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CE10KF0T-LFS(2.8mm)

Product Line

ColorVu

Product Model

DS-2CE10KF0T-LFS

Product Name

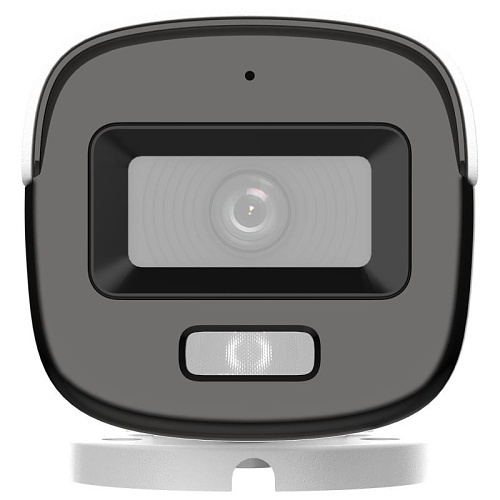

3K ColorVu Smart hybrid light Fixed Mini Bullet Camera

Product Series

KF0T-LS

Product Type

Surveillance Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal FOV: 110°, Vertical FOV: 60°, Diagonal FOV: 143°

HD Recording

Yes

Lens Mount Type

M12-mount

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared/Color

Video Signal Format

NTSC, PAL

Camera

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2960 x 1665

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/25 Second

Shortest Shutter Speed

1/50000 Second

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Mini Bullet

Weight (Approximate)

400 g

Power Description

Input Voltage

12V DC

Storage

Recording Formats

3K

Video

Analog Video Signal Format

AHD, CVBS, CVI, TVI

Horizontal Resolution

2960

Miscellaneous

Features

2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, Smart IR, White Balance, Wide Dynamic Range

Hikvision DS-2CE10KF0T-LFS 3K ColorVu Smart Hybrid Light Mini-Bullet Camera, 2.8mm Fixed Lens
