General Information

ADI Part Number

311324661

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD6W65G1-IVS(1.16mm)

Product Line

Panoramic Series

Product Model

DS-2CD6W65G1-IVS

Product Name

6 MP DeepinView Fisheye Network Camera

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Horizontal, Vertical

HD Recording

Yes

Lens Type

Fixed

Maximum Aperture

f/2.25

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

2

Wide Dynamic Range

Yes

Camera

Night Vision Distance

15 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2560 x 2560

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.16 mm

Lens Included

Yes

Maximum Focal Length

1.16 mm

Physical Characteristics

Color

Blue, White

Color Family

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Fisheye

Weight (Approximate)

610 g

Power Description

Input Voltage

12V DC

Product Information

Mount Type

Ceiling Mount, Desktop Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Impact Protection Rating

IK10

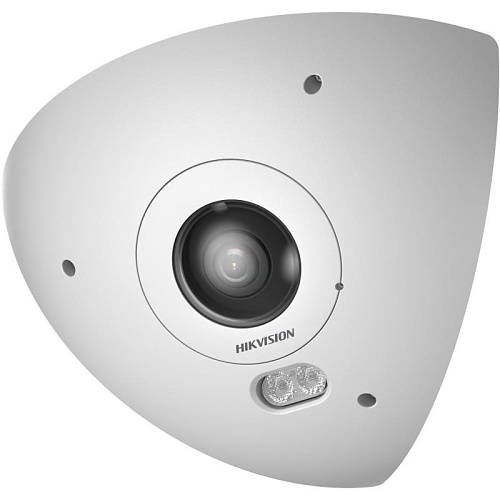

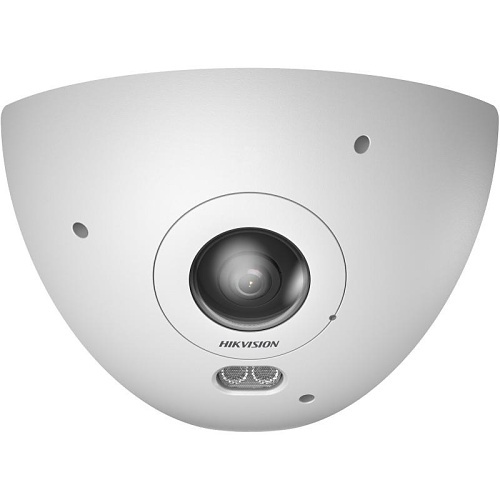

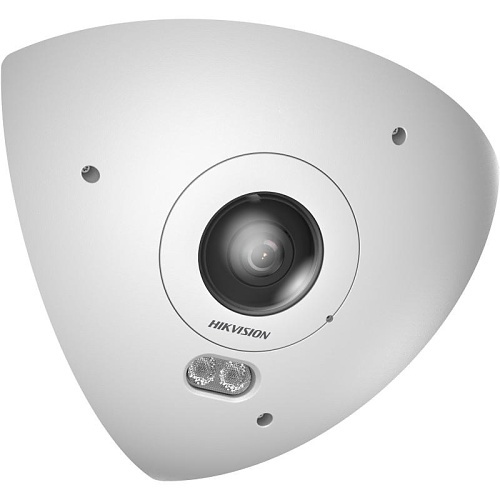

Hikvision DS-2CD6W65G1-IVS(1.16mm) PanoVu 6MP DeepinView IP Fisheye Camera, 1.16mm Fixed Lens, IP67 IK10, White
