General Information

ADI Part Number

311323676

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

iDS-2CD7347G0-XS(4mm)

Product Line

DarkfighterS

Product Model

iDS-2CD7347G0-XS

Product Name

4 MP DarkfighterS DeepinView Fixed Turret Network Camera

Product Series

DeepinView

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

: horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6°

HD Recording

Yes

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared/Color

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

Color: 0.0003 Lux at (F1.0, AGC ON),B/W: 0.0001 Lux at (F1.0, AGC ON),B/W: 0 Lux with IR

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

4 mm

Physical Characteristics

Durability

Corrosion Resistant, Dust Resistant, Water Resistant

Form Factor

Turret

Weight (Approximate)

820 g

Power Description

Input Voltage

12V DC

Product Information

Diameter

138.6 mm

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Day/Night, Defog, Highlight Compensation (HLC), Human Detection, Motion Detection, Privacy Masking, Region of Interest, Tampering Alarm, Vehicle Detection

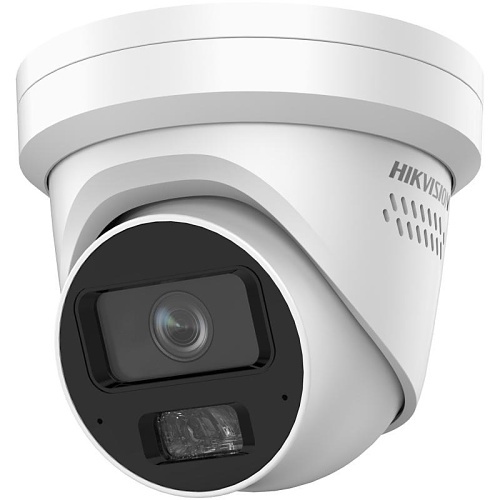

Hikvision iDS-2CD7347G0-XS(4mm) DarkfighterS DeepinView Series 4MP Fixed Turret IP Camera, 4mm Lens
