General Information

ADI Part Number

311322514

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD3146G2-ISU(6mm)(H)

Product Line

Ultra Series(SmartIP)

Product Model

DS-2CD3146G2-ISU

Product Name

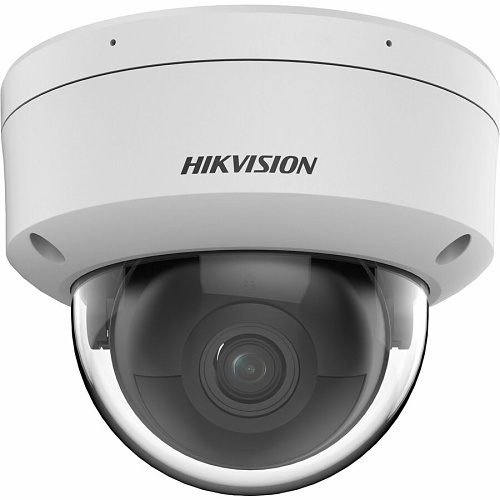

4 MP AcuSense Fixed Dome Network Camera

Product Series

3 Series with AcuSense & Heop

Product Type

Dome Cameras

weight

500 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

horizontal FOV 53°, vertical FOV 28°, diagonal FOV 64°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

6mm

Night Vision

Yes

Night Vision Type

Infrared

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

6 mm

Lens Included

Yes

Maximum Focal Length

6 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

121.5 mm

Mount Type

M12-Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Digital Watermark, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Password Protection, Region of Interest, Tamper Detection, Vehicle Detection, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Hikvision DS-2CD3146G2-ISU Ultra Series, 4MP AcuSense IP Dome Camera, 6mm Fixed Lens, IR 40M, IP67
