General Information

ADI Part Number

311320239

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD6825G0/C-IVS(2MM)(B)

Product Line

Special

Product Model

DS-2CD6825G0/C-IVS

Product Name

2 MP IR Network Camera

Product Series

Special

Product Type

Network Camera

weight

435 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.25

Maximum Frame Rate

30 fps

Minimum Focal Length

2mm

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

6 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2560 x 1440

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/25 Second

Minimum Illumination

0.0035 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2 mm

Lens Included

Yes

Maximum Focal Length

2 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Power Description

Input Voltage

12V DC

Product Information

Mount Type

M12-mount

Storage

Recording Formats

2K

Storage Type

eMMC

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

Day/Night, Digital Watermark, Human Detection, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Vehicle Detection, Video Management System, Wide Dynamic Range

Indoor/Outdoor

Outdoor

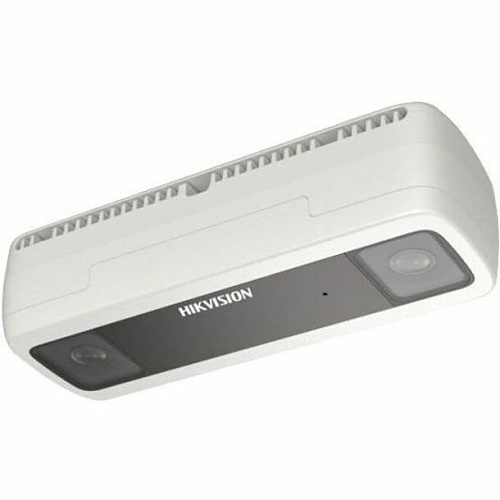

Hikvision DS-2CD6825G0/C-IVS(2MM)(B) Special Series 2MP Dual-Lens People Counting Network Camera, 2mm Fixed Lens, IP67, White
