General Information

ADI Part Number

311319911

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2126G2-ISU(2.8MM)(D)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2126G2-ISU(2.8mm)(D)

Product Name

2 MP AcuSense Fixed Dome Network Camera

Product Series

EasyIP 4.0 with AcuSense

Product Type

Dome Cameras

weight

550 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

F/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.002 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm, 4 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

121.4 mm

Mount Type

Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

DarkFighter

Impact Protection Rating

IK10

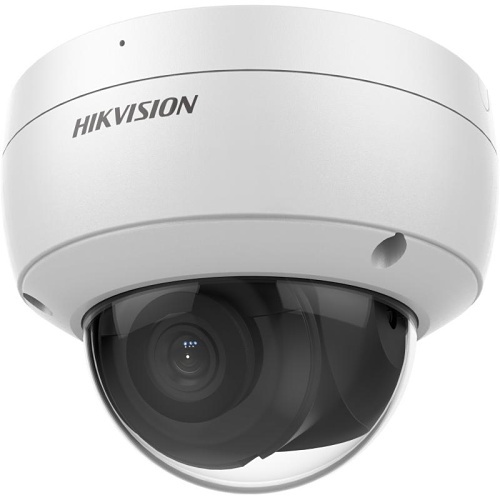

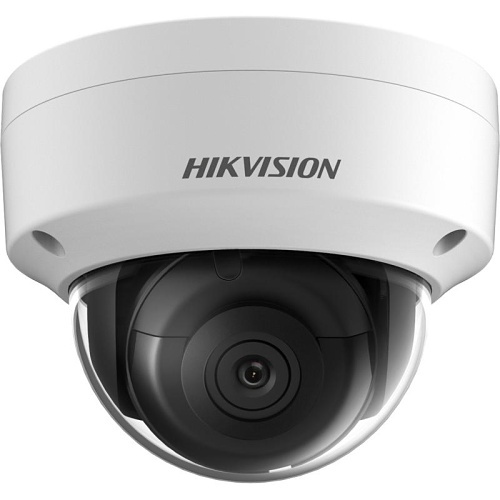

Hikvision DS-2CD2126G2-ISU(2.8MM)(D) Pro Series AcuSense IP67 2MP IR 30M IP Dome Camera, 2.8mm Fixed Lens, White
