General Information

ADI Part Number

311317998

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD4026FWD/P-L(7-33MM)

Product Line

DeepinView Series

Product Model

IDS-2CD7026G0/EP-IHSY(11-40MM)(C)

Product Name

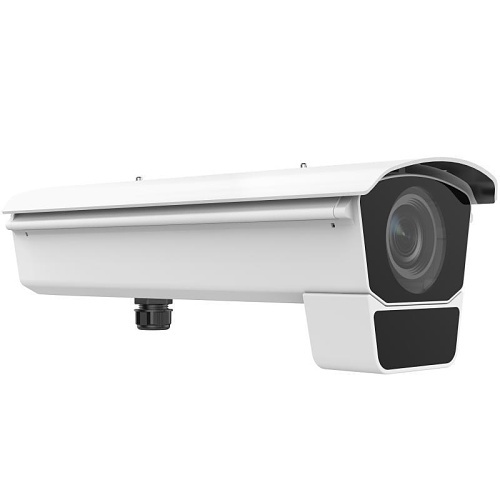

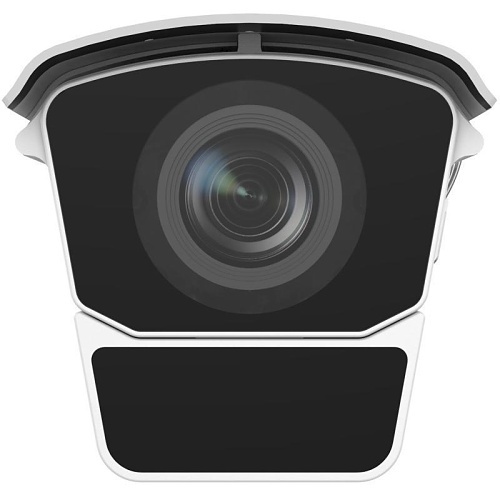

2MP DeepinView ANPR Box With Housing Camera

Product Series

7 Series

Product Type

Box Cameras

Technical Information

Field of View

Diagonal: 45.8-13.9°, Horizontal: 39.1-12.1°, Vertical: 21.4-6.8°

Lens Mount Type

CS-Mount

Lens Type

Fixed Focal Length

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

11 mm

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

140 dB

Camera

Night Vision Distance

120 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 s

Minimum Illumination

0.0005 lux|0.0001 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

11-40 mm

Lens Included

Yes

Maximum Focal Length

40 mm

Physical Characteristics

Depth

164.7 mm

Height

169.2 mm

Weight (Approximate)

3800 g

Width

465.3 mm

Power Description

Input Voltage

12V DC

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-RoHS, REACH, WEEE

Environmentally Friendly

Yes

Features

DeepinView Series

Impact Protection Rating

IK10

Hikvision DS-2CD4026FWD-P-L 2MP IP66 ANPR Low Light Box Camera with Housing and 7-33mm Lens
