General Information

ADI Part Number

311315984

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2T83G2-2I(6mm)

Product Line

AcuSense

Product Model

DS-2CD2T83G2-2I(6MM)

Product Name

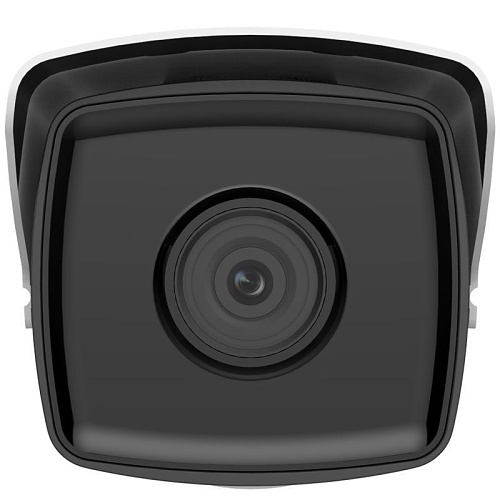

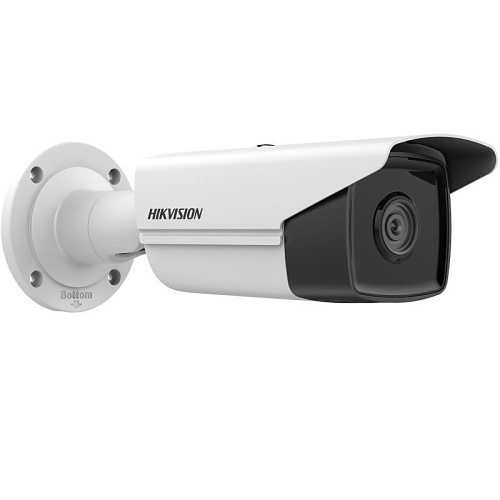

8 MP AcuSense Fixed Bullet Network Camera

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Diagonal: 63°, Horizontal: 54°, Vertical: 29°

HD Recording

Yes

Lens Mount Type

M12-Mount

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

60 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

3840 × 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.005 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

6 mm

Lens Included

Yes

Maximum Focal Length

6 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Weight (Approximate)

1090 g

Power Description

Input Voltage

12V DC

Product Information

Diameter

105 mm

Length

299.7 mm

Mount Type

Corner Mount, Junction Box Mount, Pole Mount, Vertical Mount

Storage

Recording Formats

4K

Storage Type

Cloud, Memory Card

Video

Horizontal Resolution

3840

Miscellaneous

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Region of Interest, Tamper Detection, White Balance, Wide Dynamic Range

Hikvision DS-2CD2T83G2-2I(6MM) AcuSense 8MP Fixed Bullet IP Camera with 6mm Focal Lens, IR 60m, White
