CDVI 300L-ADJ Fully Adjustable L-Bracket for 300kg and 400kg Magnetic Locks

Brand: CDVI
ADI #:300L-ADJ Model #: 300L-ADJ  Name: CDVI 300L-ADJ Fully Adjustable L-Bracket for 300kg and 400kg Magnetic Locks
  • Fully adjustable L bracket for fixing 300kg and 400kg magnetic locks
  • Robust satin anodised aluminium finish
  • Useful where the maglock cannot fit directly under the transom

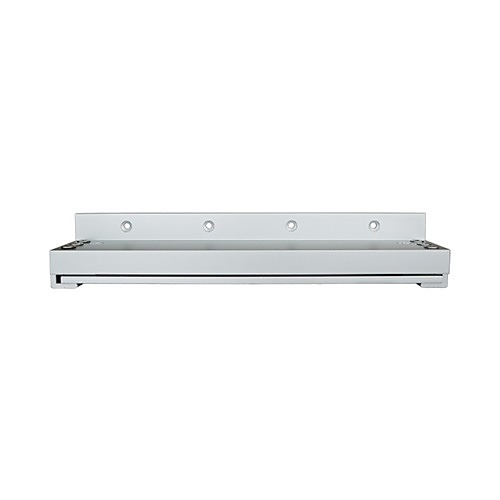

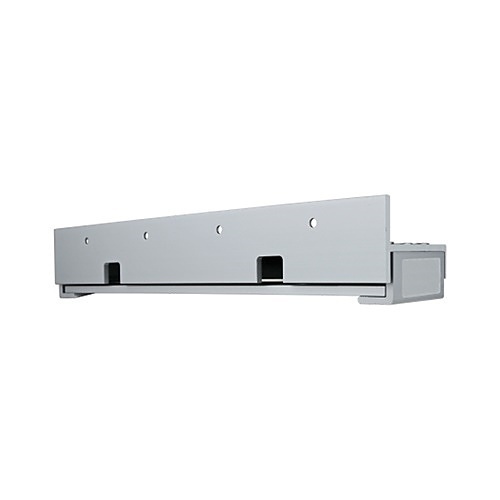

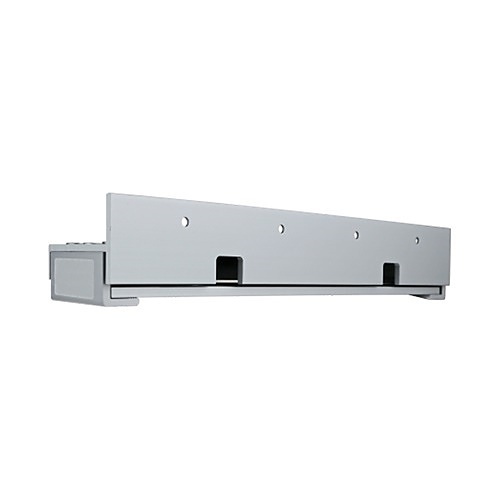

Image of 300L-ADJ

Product Overview

General Information

The CDVI Z&L brackets range offers a flexible fixing solutions for magnets and armatures.

The range includes Z and L brackets for fixing on inward and outward opening doors. For more flexibility some brackets are also adjustable and some include architectural housings for a more aesthetic finish.

The 300L-ADJ fits all CDVI 300 and 400kg internal surface magnets.

Main Features
  • Fully adjustable L bracket for fixing 300kg and 400kg magnetic locks
  • Robust satin anodised aluminium finish
  • Useful where the maglock cannot fit directly under the transom
  • Cavity & cut-out to make cabling easier, without pinching or exposing cables
  • Infinite adjustment (because every door is different!)
Information
Category : Access Control, Locking Devices, Magnetic Lock Parts, Products

Specifications

General Information

ADI Part Number
300L-ADJ
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
300L-ADJ
Mounting Bracket
L
Packaged Quantity
1
Product Name
Fully Adjustable L Bracket for 300 and 400kg Magnets
Product Type
Mounting Bracket

Technical Information

Device Supported
Magnetic Lock
Maximum Load Capacity
300 kg

Physical Characteristics

Application/Usage
Access Control System, Commercial, Door, Public Building, Wooden Door
Color
Silver
Depth
30-37 mm
Height
248 mm
Material
Satin Anodised Aluminium
Product Material
Satin Anodised Aluminium
Thickness
30-37 mm
Weight (Approximate)
0.76 kg
Width
50 mm

Product Information

Finishing
Satin Anodized Aluminium
Length
50 mm
Mount Type
Surface Mount

Miscellaneous

Additional Information
Surface Mount
Compatibility

CDVI Magnetic Locks:

  • CDVI 300
  • CDVI 400kg
Environmental Certification
RoHS
Features
Adjustable
