General Information

ADI Part Number

02902-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02902-001

Product Model

02902-001

Product Name

AXIS P1387-BE

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

HD Recording

Yes

Lens Mount Type

i-CS

Maximum Frame Rate

60 fps

Night Vision

Yes

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

60 °C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

No

Physical Characteristics

Color

White

Color Family

White

Form Factor

Box

Product Material

Plastic

Weight (Approximate)

2.20 kg

Power Description

Input Voltage

10V DC, 28V DC

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Electronic Image Stabilization, Human Detection, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Smart Object Detection, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

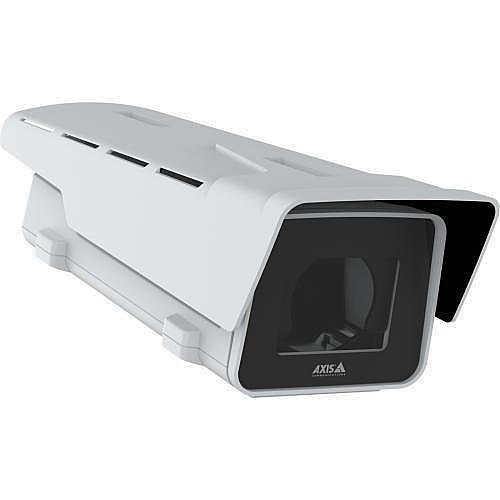

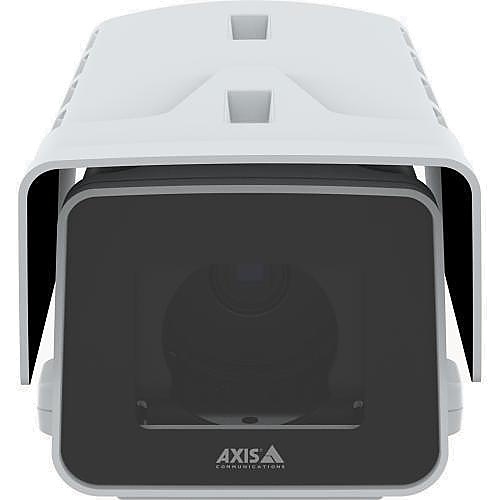

AXIS P1387-BE 5MP Outdoor Day/Night Box Camera, No Lens, White
