General Information

ADI Part Number

02326-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02326-001

Product Model

P3265-V

Product Name

AXIS P3265-V

Product Series

P32

Product Type

Fixed dome cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

HD Recording

Yes

Lens Type

Varifocal

Maximum Aperture

f/1.8

Maximum Frame Rate

60 fps

Minimum Focal Length

3.40 mm

Night Vision

Yes

Optical Zoom

2.6x

Wide Dynamic Range

Yes

Certifications

CE Marking

Yes

Ingress Protection Rating

IP52

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Color Supported

Color

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

0°C

Operating Humidity

85%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0.02 lux

Shortest Shutter Speed

1/66500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.4-8.9mm

Lens Included

Yes

Maximum Focal Length

8.90 mm

Physical Characteristics

Color

White

Color Family

White

Durability

Vandal Resistant

Form Factor

Dome

Height

103 mm

Weight (Approximate)

650 g

Product Information

Diameter

149 mm

Mount Type

Bracket Mount, Ceiling Mount, Conduit Mount, Gang Box Mount, Junction Box Mount, Pendant Mount, Recessed Mount, Tripod Mount, Wall Mount

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10

Features

Active Tampering Alarm, Audio Detection, Cross Line Detection, Day/Night, Defog, HTTPS Encryption, Microphone In, Motion Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

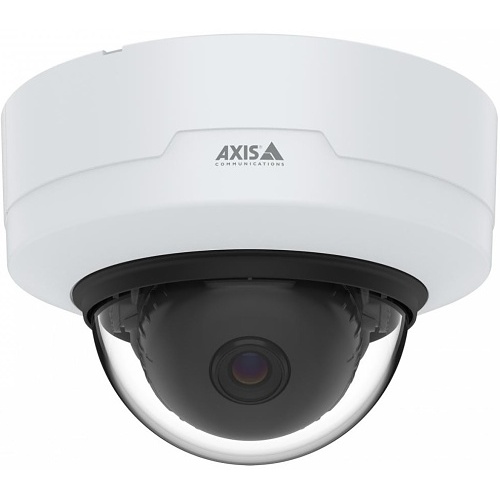

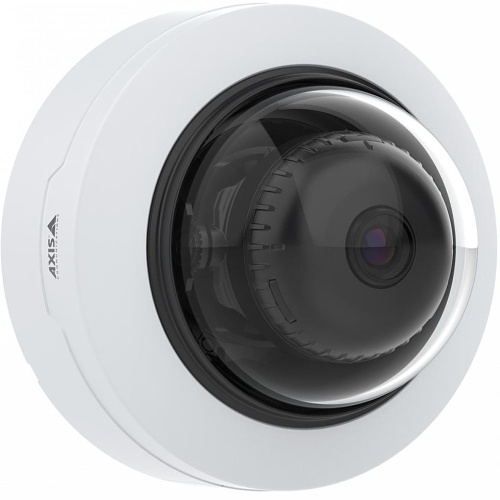

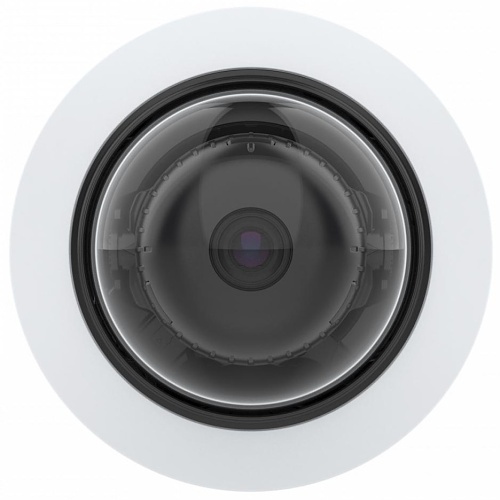

AXIS P3265-V P32 Series, Zipstream IP52 2MP 3.4-8.9mm Varifocal Lens IP Dome Camera, White
