General Information

ADI Part Number

305402379

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2TD1228T-3/QA(B)

Product Model

DS-2TD1228T-3/QA(B)

Product Name

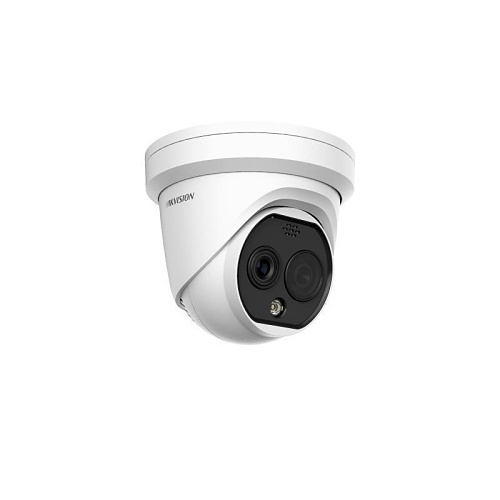

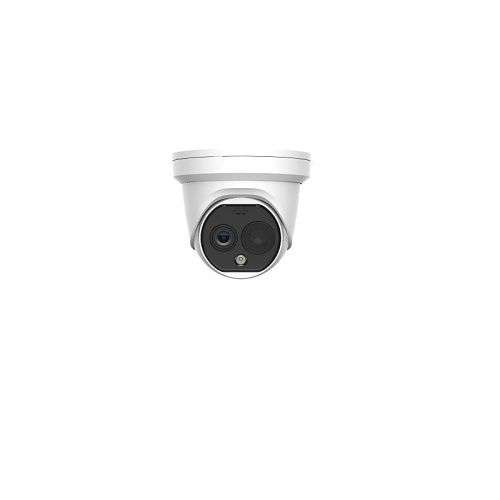

DS-2TD1228T-3/QA(B) Thermal and Optical Bi-Spectrum Network Turret Camera

Product Type

Network Camera

Technical Information

Field of View

Horizontal: 50° Vertical: 37.3°, Horizontal: 84° Vertical: 43.1°

Maximum Aperture

f/1.0

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Out of Scope

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

550°C

Minimum Operating Temperature

-20°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

0.0089 lux

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

4.3 mm

Lens Included

Yes

Maximum Focal Length

4.3 mm

Maximum Thermal Focal Length

3.6 mm

Physical Characteristics

Weight (Approximate)

940 kg

Power Description

Input Voltage

12V DC

Video

Horizontal Resolution

2688

Miscellaneous

Features

256 x 192 resolution, 12 μm, VOx UFPA, NETD 40 mK (25°C, F1.0), High quality detector with 10 years guarantee, Image processing technology linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR, Support smoke detection algorithm, Support sun-reflection filter and forklift alarm filter algorithm, Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%), Video content analysis vehicle/human classification

Hikvision DS-2TD1228T-3/QA(B) Bi-spectrum Thermography Turret Camera
