General Information

ADI Part Number

HC60W34R2

Brand Name

Honeywell Commercial Security

Manufacturer

Honeywell Commercial Security

Manufacturer Part Number

HC60W34R2

Product Line

MB Secure

Product Model

HC60W34R2

Product Name

4MP Network TDN WDR IR Indoor Dome Camera

Product Series

60

Product Type

Network Camera

weight

0.59 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal: 100° to 30°, Vertical: 53° to 17°

Maximum Aperture

f/2.8

Maximum Frame Rate

30 fps

Minimum Focal Length

2.7mm

Night Vision

Yes

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP52

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2560 x 1440

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-10°C

Operating Humidity

0.9

Exposure

Longest Shutter Speed

1/30 Second

Minimum Illumination

0.04 lux

Shortest Shutter Speed

1/32000 Second

Lens

Focal Length

2.7-13.5 mm

Lens Included

Yes

Maximum Focal Length

13.5 mm

Minimum Aperture

f/1.4

Physical Characteristics

Color

Black, White

Depth

126 mm

Durability

Dust Resistant, Water Resistant

Form Factor

Dome

Height

122 mm

Power Description

Input Voltage

12V DC, 24V AC

Product Information

Diameter

126 mm

Mount Type

Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

RoHS, UL

Environmentally Friendly

Yes

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

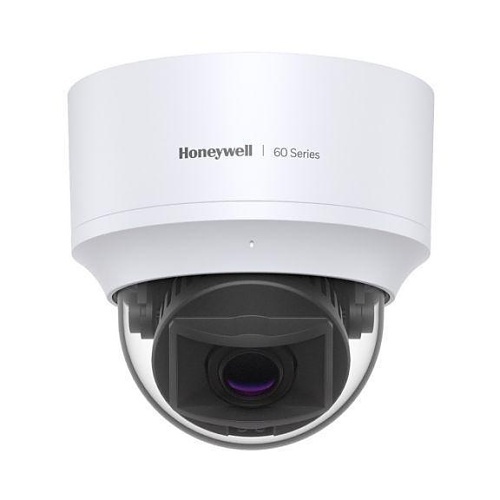

Honeywell HC60W34R2 60 Series 4MP IR Indoor Dome IP Camera with Built-in Microphone, WDR 120 dB, 2.7-13.5mm Lens, White
