General Information

ADI Part Number

WV-S15500-V3L

Brand Name

i-PRO

Manufacturer

Panasonic

Manufacturer Part Number

WV-S15500-V3L

Product Model

WV-S15500-V3L

Product Name

S-series High resolution Network camera with AI engine

Product Series

S

Product Type

Bullet

weight

2.4 kg

Technical Information

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/1.3 (WIDE)

Maximum Frame Rate

30 fps

Minimum Focal Length

2.9 mm

Night Vision

Yes

Optical Zoom

3.1x

Video Signal Format

NTSC/PAL

Certifications

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Color

Maximum Video Resolution

3072 x 1728

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

10-100%

Exposure

Longest Shutter Speed

1/30 Second

Minimum Illumination

0.05 lux|0.07 lux

Shortest Shutter Speed

1/10000 Second

Lens

Focal Length

2.9-9mm

Lens Included

Yes

Maximum Focal Length

9 mm

Minimum Aperture

f/2.5 (TELE)

Physical Characteristics

Color

White

Depth

383 mm

Durability

Dust Resistant, Shock Resistant, Water Resistant, Wind Resistant

Form Factor

Bullet

Height

133 mm

Width

133 mm

Power Description

Input Voltage

12V DC

Product Information

Mount Type

Ceiling Mount, Wall Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Environmental Certification

CE, FCC, UL

Environmentally Friendly

Yes

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

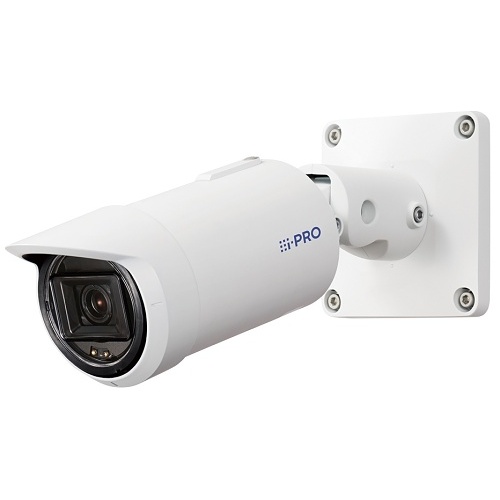

i-PRO WV-S15500-V3L S Series 5MP Outdoor HD IP Bullet Camera with AI Engine
