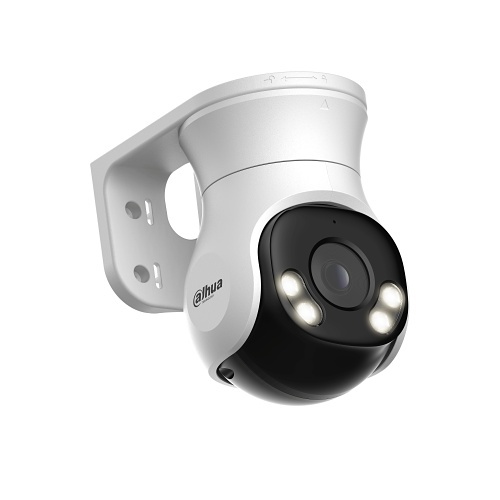

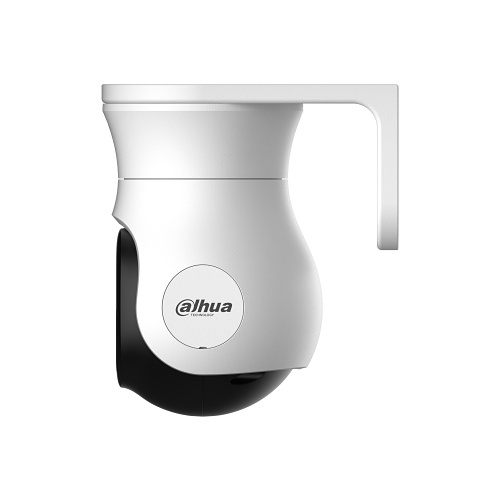

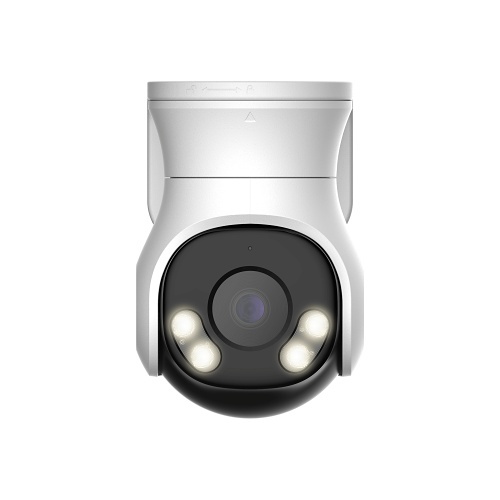

Dahua DH-HAC-PT1509AP-A-LED-0280B-S2 5MP Full-color HDCVI Fixed-focal PT Camera, 2.8mm Fixed Lens

Brand: Dahua Technology
ADI #:HPT1509APALED28S2 Model #: DH-HAC-PT1509AP-A-LED-0280B-S2  Name: Dahua DH-HAC-PT1509AP-A-LED-0280B-S2 5MP Full-color HDCVI Fixed-focal PT Camera, 2.8mm Fixed Lens
  • 120 dB True WDR, 3D NR
  • 24/7 Color imaging
  • Smart Area Lighting
Image of HPT1509APALED28S2

Product Overview

General Information

The Lite Series is a great choice for consumers looking for high qualitymonitoring products at a reasonable price. Its low cost and highperformance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-colorand starlight, providing various solutions for different scenarios.

Main Features
  • 120 dB True WDR, 3D NR
  • 24/7 Color imaging
  • Smart Area Lighting
  • Pan and tilt
  • 40m Illumination distance
  • Super Adapt
  • Built-in mic
  • Quick-to-install structure saves installation time
  • 2.8mm Fixed lens
Information
Category : HDoC Cameras, Products, PTZ Security Cameras, Video Surveillance

Specifications

General Information

ADI Part Number
HPT1509APALED28S2
Brand Name
Dahua Technology
Manufacturer
Dahua Technology
Manufacturer Part Number
DH-HAC-PT1509AP-A-LED-0280B-S2
Product Model
DH-HAC-PT1509AP-A-LED-0280B-S2
Product Name
5MP Full-color HDCVI Fixed-focal PT Camera
Product Series
Lite
Product Type
Fixed-focal PT Camera

Technical Information

Effective Camera Resolution
5MP
Field of View
Diagonal: 131°, Horizontal: 111°, Vertical: 57°
Lens Mount Type
M12-mount
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
25 fps

Certifications

Ingress Protection Rating
IP66

Display & Graphics

Maximum Video Resolution
2880 x 1620

Environmental Conditions

Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%

Exposure

Longest Shutter Speed
1/25 s|1/30 s
Minimum Illumination
0 lux
Shortest Shutter Speed
1/100000 s

Lens

Maximum Focal Length
2.8 mm

Physical Characteristics

Weight (Approximate)
0.40 kg

Power Description

Input Voltage
12V DC

Product Information

Mount Type
Ceiling Mount, Vertical Pole Mount, Wall Mount

Video

Horizontal Resolution
2880

Miscellaneous

Environmental Certification
CE-EMC: EN 55032, CE-LVD: EN 62368-1, EN 55035
