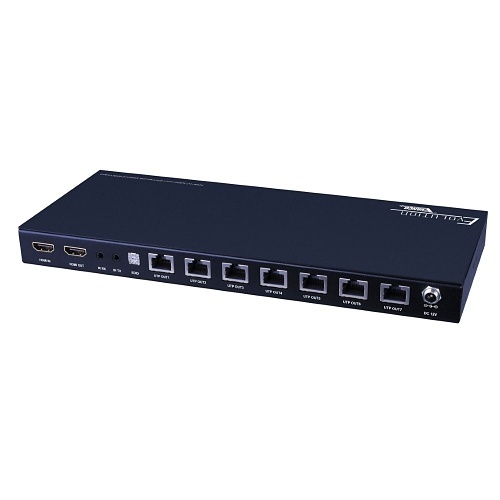

ADI #:EVSP1017 Model #: EVSP1017 Name: Vanco EVSP1017 Evolution HDMI 1x7 Splitter over CAT5e/CAT6 Cable with Additional HDMI Output
Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
Transmission Range: Extends 1080p resolutions up to 164ft/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
Product Overview
General Information
Main Features
Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
Transmission Range: Extends 1080p resolutions up to 164ft/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
Dynamic or manual EDID management; ability to manually select the best compatible EDID or automatically blend EDID of the 8 connected HDMI sinks
Additional HDMI output for local display or to connect an additional EVSP1017 to cascade for an expanded distribution system
Supports HDMI Deep Color and 3D
Supports multiple audio formats including Dolby True HD- DTS-master- etc.
Wide band IR system allowing for control of the single source from any of the displays connected
Wideband IR signal from 20KHz to 60KHz
HDCP Compliant
Information
Category : Commercial Video Signal Distribution, Pro AV, Pro HDMI Splitters, Products
Specifications
General Information
ADI Part Number
EVSP1017
Brand Name
Vanco
Manufacturer
Vanco International, Inc
Manufacturer Part Number
EVSP1017
Product Line
Evolution
Product Model
EVSP1017
Product Name
Evolution HDMI 1×7 Splitter over Cat5e/Cat6 Cable with Additional HDMI Output
