Eaton SDR-WEXT-G2-OR-NC External Burglar Alarm Siren, Sounder External Wired G2, Orange Lens, No Cover

Brand: Eaton
ADI #:SDR-WEXT-G2-OR-NC Model #: SDR-WEXT-G2-OR-NC  Name: Eaton SDR-WEXT-G2-OR-NC External Burglar Alarm Siren, Sounder External Wired G2, Orange Lens, No Cover
  • External burglar alarm siren with orange lens
  • Compatible with i-on control panels and 868 MHz systems
  • Wired variants work with third-party control units

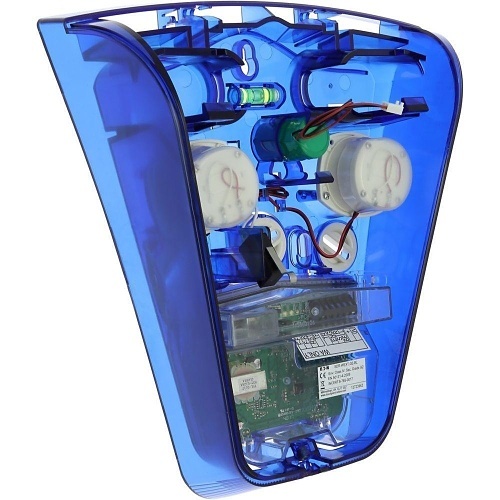

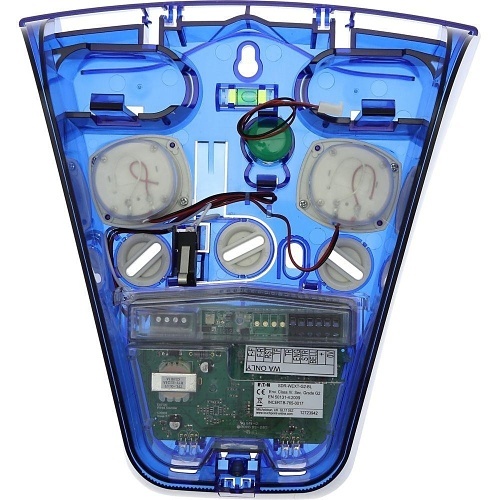

Image of SDR-WEXT-G2-OR-NC

Product Overview

General Information

A range of external sounders, in three colours, with options for radio, wired and decoy.

Designed for use with i-on control panels new and legacy 868MHz systems. Wired variants also compatible with third-party control units

Engineer-friendly: a self-supporting lid, built-in spirit-level and revolving fixing holes for ease of installation including on uneven surfaces



High-power comfort LEDs and LED strobes:

provides reassurance for the user



Common enclosure for entire range: impact-resistant polycarbonate construction in a choice of 3 colours: blue, amber and red

At a glance...

  • Selectable between Self Contained Bell (SCB) or Self Actuated Bell (SAB) modes
  • Sound output 100 dB at 1 meter
  • Low current consumption (35mA and 225mA in-alarm current)
  • Lid and rear tamper detection
  • Selectable cut-off timer
  • Choice of siren tones
  • Compliance: EN50131-4 Grade: Grade 2 (SDR-WEXT-G2 and SDR-REXT-G2), or Grade 3 (SDR-WEXT-G3),PD6662:2010, EN50131-4:2009
Main Features
  • External burglar alarm siren with orange lens
  • Compatible with i-on control panels and 868 MHz systems
  • Wired variants work with third-party control units
  • Self-supporting lid and built-in spirit-level for easy installation
  • High-power comfort LEDs and LED strobes
  • Impact-resistant polycarbonate construction
  • Selectable SCB or SAB modes
  • 100 dB Sound output at 1m
  • Low current consumption
  • Lid and rear tamper detection
Information
Category : Intrusion, Products, Security Sirens & Strobes, Sirens

Specifications

General Information

ADI Part Number
SDR-WEXT-G2-OR-NC
Brand Name
Eaton
Manufacturer
Eaton Corporation
Manufacturer Part Number
SDR-WEXT-G2-OR-NC
Product Functions
Alarm
Product Model
SDR-WEXT-G2-OR-NC
Product Name
External Sounder
Product Type
Sounder

Technical Information

Alarm Type
Audible
Connectivity Technology
Wired
Light Color
Orange

Certifications

Security Grade
2

Physical Characteristics

Application/Usage
Control Panel, Outdoor
Color
Blue, Orange, Red
Depth
80 mm
Durability
Impact Resistant
Form Factor
Surface Mount
Height
290 mm
Weight (Approximate)
1.20 kg
Width
277 mm

Power Description

Input Voltage
16V DC
Power Source
Battery

Product Information

Bulb/Tube Type
LED

Miscellaneous

Compatibility
Eaton G2 Siren
