CDVI RTE-WIR Wave infrared touchless Exit Switch

Please upgrade to the new Edge browser, or use Chrome, Firefox or Safari, before continuing. Internet Explorer will not support the best shopping experience on the ADI Digital Branch site after March 12, 2021.

CDVI RTE-WIR Wave infrared touchless Exit Switch

Brand: CDVI

ADI #:RTE-WIR Model #: RTE-WIR Name: CDVI RTE-WIR Wave infrared touchless Exit Switch

Stylish surface mount touchless infrared exit device
High-quality stainless steel finish
Adjustable for time and activation distance

Sale Type: Clearance

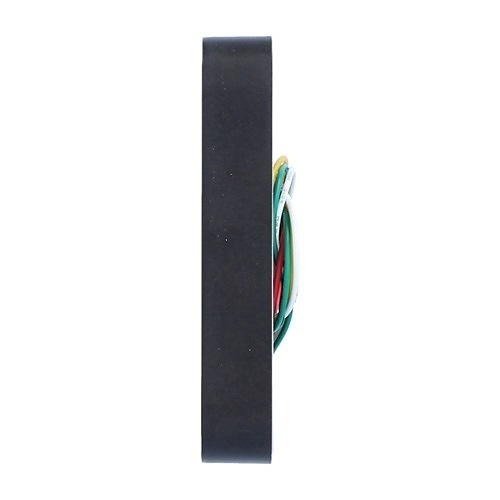

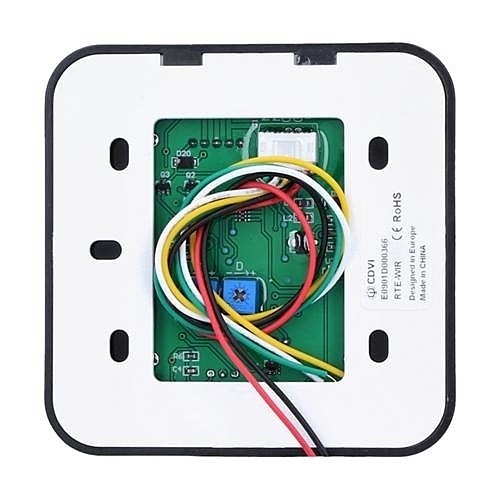

Image of RTE-WIR

Product Overview

General Information

This is a brushed stainless steel, surface mount exit device. Infrared detection allows switch activation with just a hand wave at 3-15 cm adjustment range, without needing to make contact with the device. This touch-free activation is ideal for sterile environments, DDA compliant installations and general high traffic areas such as hospitals, public buildings and colleges. The RTE-WIR can be connected directly to an access control device to be used as an exit button. The bi-coloured LED indicator gives visual verification of the device status.

Main Features

Stylish surface mount touchless infrared exit device
High-quality stainless steel finish
Adjustable for time and activation distance
Tested for 500,000 cycle mechanical life
Two-colour LED visual feedback
Compact with low-rise design for a tidy finish

Information

Category : Access Control, Egress Devices, Products, Request to Exit Devices, Touchless Access Control

Specifications

General Information

ADI Part Number

RTE-WIR

Brand Name

CDVI

Manufacturer

CDVI

Manufacturer Part Number

RTE-WIR

Packaged Quantity

1

Product Colour

Black, Brushed Silver

Product Model

RTE-WIR

Product Name

RTE-WIR - Wave Infrared Exit Switch

Product Series

RTE

Product Type

Exit Switch

Technical Information

Gang Type

Single Gang

Environmental Conditions

Maximum Operating Temperature

55°C

Physical Characteristics

Application/Usage

College, Commercial, Door, Hospital, Industrial, Public Building, School, Sterile Environment

Color

Silver

Depth

14 mm

Height

86 mm

Material

ABS, Stainless Steel

Width

86 mm

Power Description

Input Voltage

12V DC, 24V DC

Product Information

Contact Type

NO/NC

Finishing

ABS, Stainless Steel

Mount Type

Surface Mount

Print/Message

Exit

Warranty

Limited Warranty

2 Year

Miscellaneous

Features

Infrared Receiver, LED Indicator, Single Pole, Surface Mount
