CDVI RTE-IR-F Special Access NO Touch Exit Flush

Brand: CDVI
ADI #:RTE-IR-F Model #: RTE-IRF  Name: CDVI RTE-IR-F Special Access NO Touch Exit Flush
  • Touchless infrared exit trigger device
  • High quality stainless steel plate
  • Standard UK back-box format for simple installations

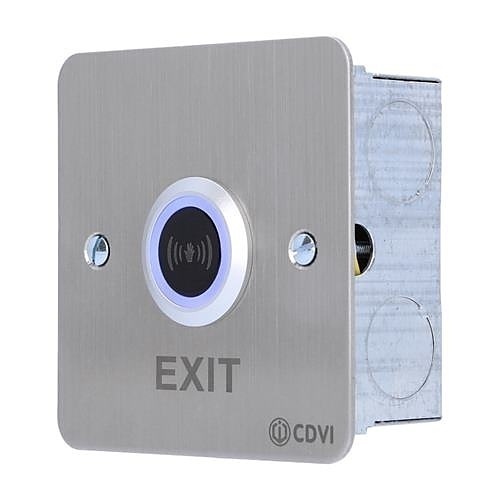

Image of RTE-IR-F

Product Overview

General Information

This infrared exit trigger device is ideal for installations that require a touch-free solution. Users simply wave their hand in front of the device (with an adjustable detection range between 3-15cm) to activate the switch and unlock the door. The RTE-IRF is a flush mounted device which fits onto a standard UK back-box format and benefits from a dual-colour LED status indicator.

Main Features
  • Touchless infrared exit trigger device
  • High quality stainless steel plate
  • Standard UK back-box format for simple installations
  • Suitable for high-traffic use due to touch-free operation
  • Perfect for sterile environments and DDA compliant installations
Information
Category : Access Control, Products, Touchless Access Control

Specifications

General Information

ADI Part Number
RTE-IR-F
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
RTE-IR-F
Packaged Quantity
1
Product Colour
Brushed Stainless Steel, Silver
Product Model
RTE-IRF
Product Name
Infrared Exit Device, Square with EXIT logo, Flush Mount
Product Series
RTE
Product Type
Touch Free Button

Technical Information

Gang Type
Single Gang

Environmental Conditions

Maximum Operating Temperature
55°C

Physical Characteristics

Application/Usage
College, Commercial, Door, Hospital, Industrial, Public Building, School, Sterile Environment
Color
Silver
Depth
6 mm
Height
85 mm
Material
Stainless Steel
Weight (Approximate)
0.22 kg
Width
85 mm

Power Description

Input Voltage
24V DC

Product Information

Finishing
Stainless Steel
Mount Type
Flush Mount
Print/Message
Exit

Warranty

Limited Warranty
2 Year

Miscellaneous

Features
Adjustable range, DDA compliant, Infrared sensor, LED Indicator, Touchless exit button
