CDVI RTE-DSS Non-shroud stainless Steel green Dome Exit device

Brand: CDVI
ADI #:RTE-DSS Model #: RTE-DSS  Name: CDVI RTE-DSS Non-shroud stainless Steel green Dome Exit device
  • High impact green dome exit button

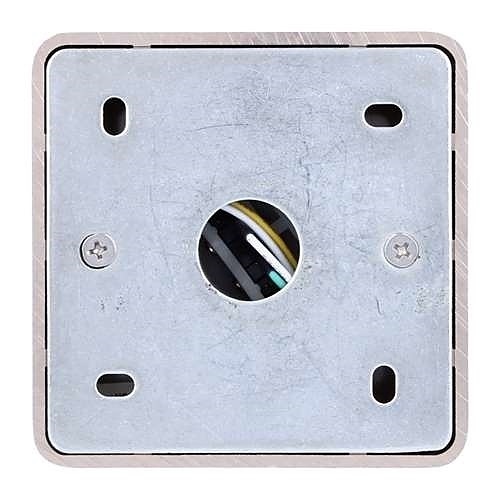

  • Surface mount with stainless steel face
  • Standard UK back-box format
Image of RTE-DSS

Product Overview

General Information

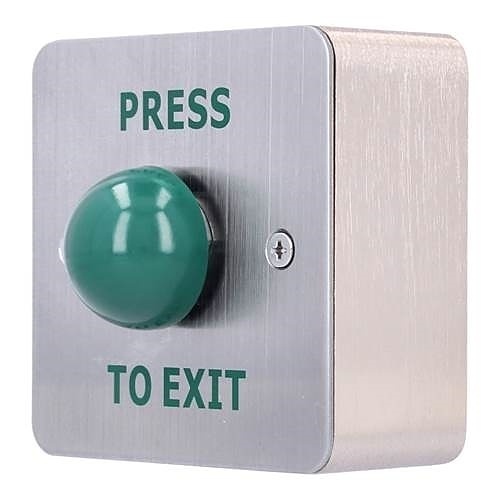

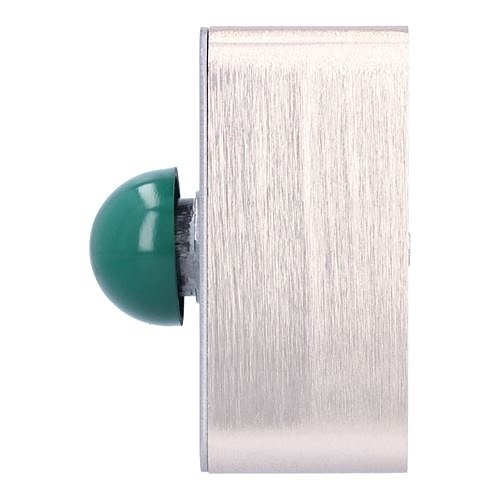

The RTE-DSS is a high impact green dome exit swtich. The green dome is particularly suited for users who require a larger "target" button. This push button is hardy and reliable, suitable for medium to heavy traffic use and is intended for internal environments only.

Main Features
  • High impact green dome exit button
  • Surface mount with stainless steel face
  • Standard UK back-box format
  • Suitable for internal use only
  • Medium to heavy traffic usage
Information
Category : Access Control, Door Release Buttons, Egress Devices, Products
EAN Code : 3662211019287

Specifications

General Information

ADI Part Number
RTE-DSS
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
RTE-DSS
Packaged Quantity
1
Product Colour
Green, Silver
Product Model
RTE-DSS
Product Name
Stainless Steel Dome Exit Button
Product Series
RTE
Product Type
Exit Button

Technical Information

Gang Type
Single Gang
Number of Buttons
1

Environmental Conditions

Maximum Operating Temperature
55°C

Physical Characteristics

Application/Usage
College, Commercial, Door, Industrial, Public Building, School
Color
Silver
Depth
29 mm
Height
85 mm
Material
Stainless Steel
Width
85 mm

Power Description

Input Voltage
12V DC, 24V DC

Product Information

Contact Type
NO/NC
Finishing
Stainless Steel
Mount Type
Surface Mount
Print/Message
Press to Exit

Warranty

Limited Warranty
2 Year

Miscellaneous

Features
Single Pole, Surface Mount
