Name: CDVI SELWR433 26-bit Wiegand Wireless Receiver
Brand: CDVI
SKU: SELWR433

CDVI SELWR433 26-bit Wiegand Wireless Receiver

Brand: CDVI

ADI #:SELWR433 Model #: SELW-R433 Name: CDVI SELWR433 26-bit Wiegand Wireless Receiver

Wiegand 26-bit radio receiver
Single channel Wiegand output
Up to 100m range in open field

Product Overview

General Information

This receiver is equipped with a 26-bit Wiegand output, making it easy to connect it to online access control systems. With a compact design and compatibility with all TX26 Series transmitters, the SELW-R433 is a handy and versatile addition to many systems. It is ideal for incorporating automatic doors, gates, barriers, or lights into your access control system.

Main Features

Wiegand 26-bit radio receiver
Single channel Wiegand output
Up to 100m range in open field
Optional tuned antenna for enhancing the sensitivity of the receiver
Compatible with all TX26 Series transmitters

Information

Category : Access Barriers & Crowd Control, Access Control, Gate Remote Transmitters, Products

Specifications

General Information

ADI Part Number

SELWR433

Brand Name

CDVI

Manufacturer

CDVI Group

Manufacturer Part Number

SELW-R433

Packaged Quantity

Product Model

SELWR433

Product Name

SELWR433 Receiver Module

Product Series

SELW

Product Type

Gate Operator Receiver Module

Wired/Wireless

Wireless

Technical Information

Number of Buttons

Wireless Technology

Radio Frequency

Certifications

TAA Compliant

Physical Characteristics

Application/Usage

Commercial, Gate, Industrial, Public Building

Color

Transparent

Depth

45 mm

Height

28 mm

Material

Polycarbonate

Product Material

Polycarbonate

Weight (Approximate)

0.065 kg

Width

105 mm

Power Description

Input Voltage

12V AC, 12V DC, 24V AC, 24V DC

Power Source

AC, DC

Additional Information

Power requirements: 12 or 24V (AC or DC)

Compatibility

2-Channel Mini Transmitters SETR2641AM2R, SETR2641AM2B, SETR2641AM2C, SETR2641AM2N, 2-Channel Transmitters S2TR2641E2, 2-Channel Ultra-Thin Transmitters S5TR2641E2S, 4-Channel Transmitters S2TR2641E4, 4-Channel Ultra-Thin Transmitters S5TR2641E4S

Features

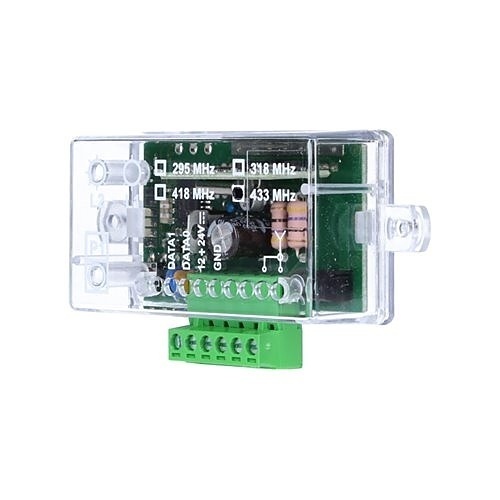

Aerial avaiable to enhance sensitivity, Transparent polycarbonate enclosure, Wiegand output

Indoor/Outdoor

Indoor
