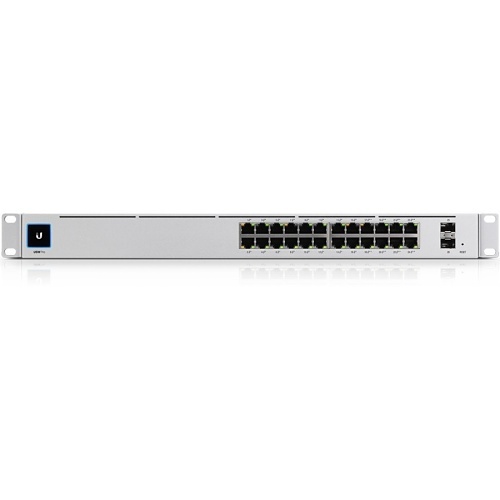

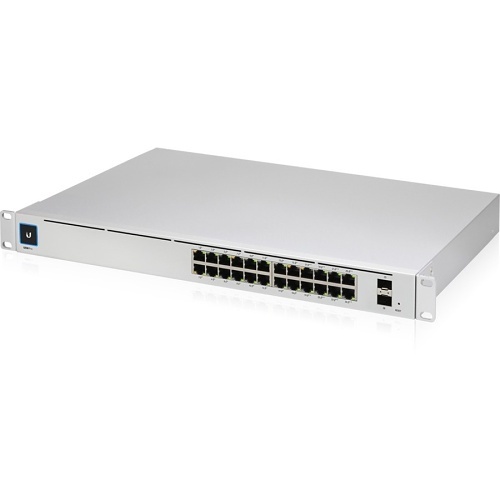

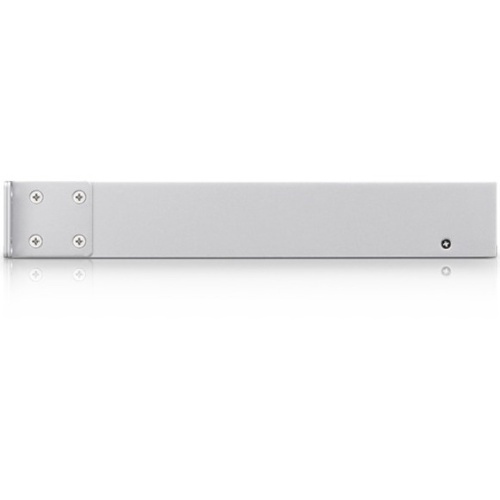

ADI #:USW-PRO-24-POE Model #: USW-PRO-24-POE Name: Ubiquiti USW-Pro-24-POE 24-Port Professional Layer 3 Switch, 400W
Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Product Overview
General Information
Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Main Features
Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Built-in power supply to ensure all components are being supplied with accurate voltage
Supports layer 3 switching for enhanced performance and usability
Rack mounting enables you to organize wires & secure cables for professional installation
Management capability allows maximum efficiency and with unrestricted control
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Information
Category : Data Comm & Networking, Hubs, Routers & Switches, Network Switches, Networking Devices, Products, Video Surveillance
Specifications
General Information
ADI Part Number
USW-PRO-24-POE
Brand Name
Ubiquiti
Manufacturer
Ubiquiti Inc.
Manufacturer Part Number
USW-PRO-24-POE
Product Model
USW-PRO-24-POE
Product Name
USW-Pro-24-POE (400W)
Product Type
POE Switch
Technical Information
Media Type Supported
Optical Fiber, Twisted Pair
I/O Expansions
Expansion Slot Type
SFP+
Number of SFP+ Slots
2
Interfaces/Ports
Modular
Yes
Port/Expansion Slot Details
16 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet Uplink, 8 x Gigabit Ethernet PoE++
