General Information

ADI Part Number

327800906

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CE72KF0T-LFS(3.6mm)

Product Line

ColorVu

Product Model

DS-2CE72KF0T-LFS

Product Name

3K ColorVu Smart hybrid light Fixed Turret Camera

Product Series

KF0T-LS

Product Type

Surveillance Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°

HD Recording

Yes

Lens Mount Type

M12-Mount

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared/Color

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2960 x 1665

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/25 Second

Minimum Illumination

0.001 Lux at(F1.0, AGC ON), 0 Lux with white light

Shortest Shutter Speed

1/50000 Second

Lens

Lens Included

Yes

Maximum Focal Length

3.60 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Turret

Weight (Approximate)

320 g

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Storage

Recording Formats

3K

Video

Analog Video Signal Format

AHD, CVBS, CVI, TVI

Miscellaneous

Features

Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, White Balance, Wide Dynamic Range

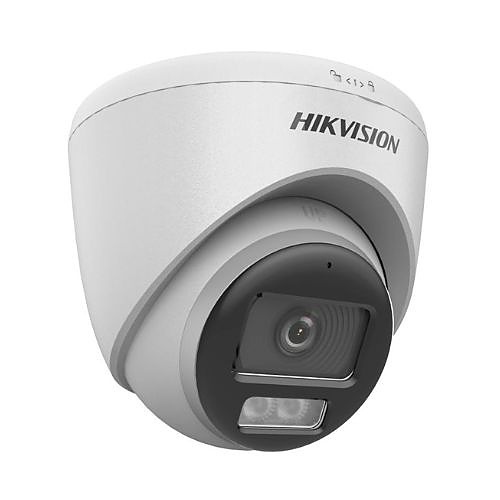

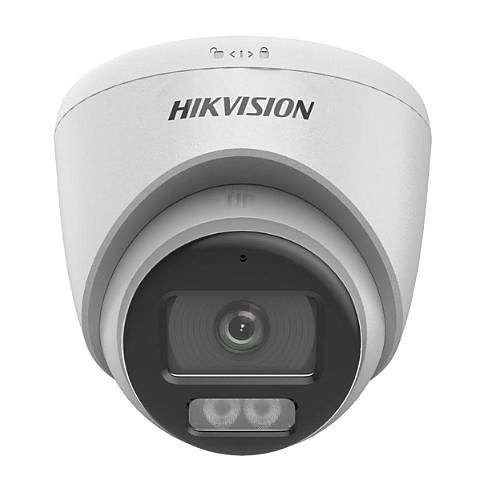

Hikvision DS-2CE72KF0T-LFS 3K ColorVu Smart Hybrid Light Turret Camera, 3.6mm Fixed Lens
