General Information

ADI Part Number

311313652

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2143G2-IS(4MM)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2143G2-IS

Product Name

4 MP EXIR Fixed Dome Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Dome Cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

HD Recording

Yes

Lens Mount Type

M12-Mount

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

4 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Weight (Approximate)

530 g

Power Description

Input Voltage

12V DC

Product Information

Diameter

110.8 mm

Mount Type

Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE, REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in Card Reader, Cross Line Detection, Day/Night, Face Detection, Highlight Compensation (HLC), HTTPS Encryption, Ingress Protection, Motion Detection, Password Protection, Region of Interest, SD Card Local Storage, Tampering Alarm

Impact Protection Rating

IK10

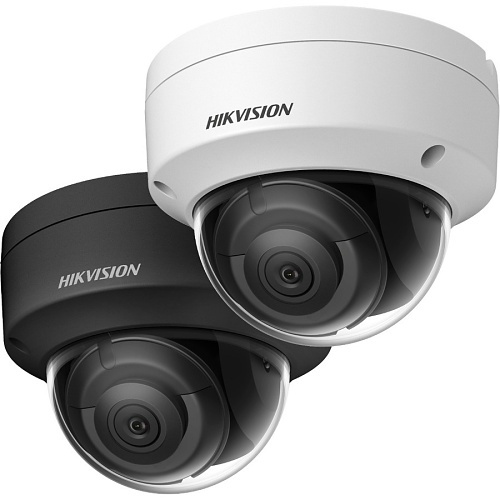

Hikvision DS-2CD2143G2-IS Pro Series AcuSense IP67 4MP IR 30M IP Dome Camera, 4mm Fixed Lens, White
