General Information

ADI Part Number

HHDW1500TLMQA2S2G

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-HAC-HDW1500TLMQP-A-0280B-S2-G

Product Line

Lite

Product Model

DH-HAC-HDW1500TLMQ(-A)

Product Name

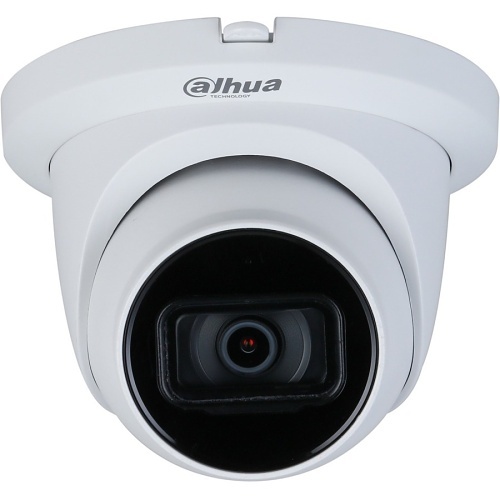

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera

Product Series

Lite

Product Type

Turret Cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

132° × 111° × 58° (diagonal × horizontal × vertical)

HD Recording

Yes

Lens Mount Type

M12-mount

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Colour

Number of IR LEDs

1

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2880 x 1620

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/25 Second

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

Silver

Color Family

White

Durability

Dust Resistant, Water Resistant

Form Factor

Eyeball

Weight (Approximate)

330 g

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

109.9 mm

Mount Type

Ceiling Mount, Junction Box Mount, Pole Mount, Vertical Mount, Wall Mount

Video

Analog Video Signal Format

AHD, CVBS, CVI, HDCVI, TVI

Miscellaneous

Features

2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Mechanical ICR, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Privacy Masking

Indoor/Outdoor

Indoor, Outdoor

Dahua HAC-HDW1500TLMQ-A Lite Series, Starlight HDCVI IP67 5MP 2.8mm Fixed Lens, IR 30M HDoC Turret Camera, Grey
